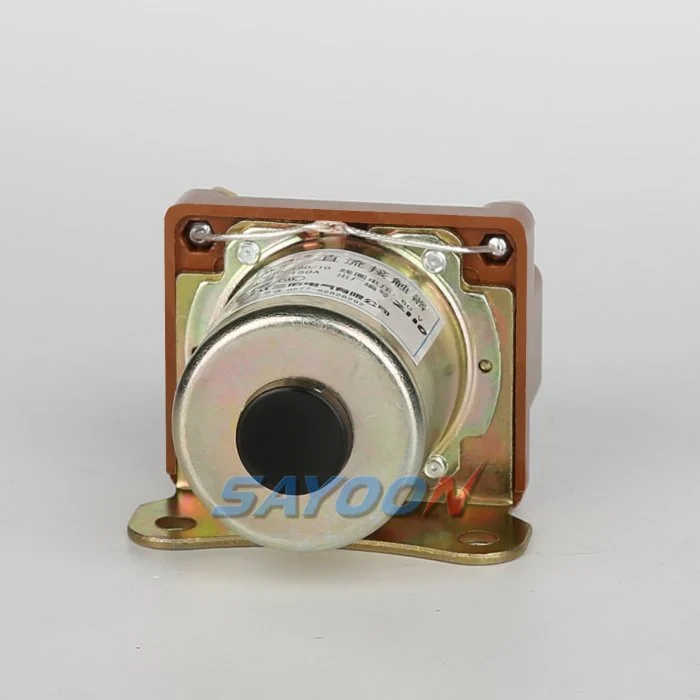

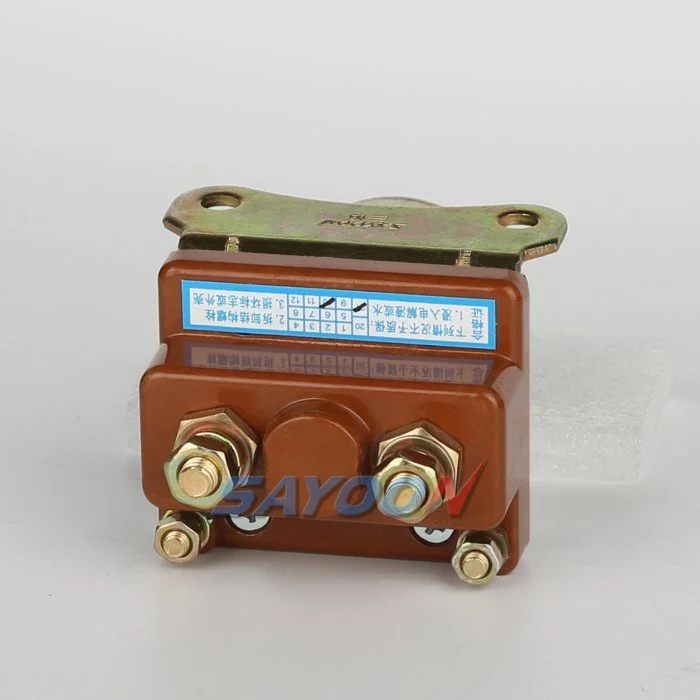

Overview

FEATURES

The product is ideal for a variety of applications including electric forklifts, battery-powered vehicles, tractors and excavators. It is also designed for use on brick making machines and cleaning trucks, making it versatile across different industries. In addition, it can be effectively used in automotive air conditioning systems and communication power supplies as well as uninterruptible power supplies.

This product is particularly beneficial for power switches, including those used in electroplating electronic control systems and control circuits. It has the characteristics of compact size, strong carrying capacity, long service life and easy maintenance, and is very popular among users.

The manufacturer has undergone rigorous testing this product complies with the standards specified in JB2286-78, JB3974-85, YD/585-92, YD/T512-92.

SAYOON MODEL IMPLICATION

CZ10	-150	-□	/□
1	2	3	4

1	Product type
2	Rated current
3	Mounting bracket type: M-Horizontal (default); E-Level embedded; H-Inclined; K-Wide distance; N-Multi-functional vertical; DH-Dismount inclined
4	Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

USES

This product features a single normally open contact, making it an excellent choice for a variety of applications. It is particularly suitable for electric three-wheelers, which are increasingly popular for their environmentally friendly transportation solutions. In addition, this product can be effectively used in various types of motors to improve their operating capabilities and efficiency.

It is ideal for sweepers, which play a vital role in keeping commercial and industrial environments clean. This product is also suitable for ceramic machinery, which is beneficial to the production of high-quality ceramic products. Additionally, it can be used for throwing carts and brick carts, which are crucial during construction and manufacturing processes.

In addition to these applications, the product is also compatible with clean cars, helping to meet the need for environmentally friendly cleaning solutions. It is also suitable for solar boats, promoting the use of sustainable energy in marine applications. Finally, the product can be integrated into electronic control systems, including uninterruptible power supplies, ensuring reliable power management and power outage protection.

The product is designed with a single normally open contact, making it an important component in a variety of electrical and electronic systems across multiple industries, providing users with a reliable, efficient solution for their needs.

TECHNICAL PARAMETERS: (Version R1.64)

SAYOON Product Type	CZ10-150
Contact form	1 NO
Coil Rated voltage (DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.
Contact voltage (DC V)	≤60V
Rated load current of contact 48V circuit (A)	150A
Typical voltage drop across contacts per 100A	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯35%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	25ms
Pull-in time (n/o contacts to close)	5ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	3ms
Insulation Resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	800A/5ms at 48V DC
Coil power (W)	8-13
Temperature rise of coil (K)	≤60
Temperature rise on outgoing terminal (K)	≤65
Electrical life	10,000 times
Mechanical life	150,000 times
Work specification	Continuous
Contact material	Ag alloy
Load terminal type	M6 Screw
Coil terminal type	M4 Screw
Testing organization certification	CCC,CE,FCC

Note: Sayoon is committed to enhancing the overall performance characteristics of our products given that customers have diverse operating environments and therefore require different functional focuses. To do this, we may adjust specific parameters such as coil size and temperature rise. It should be noted that the above parameters are for reference only. For comprehensive details and guidance, we recommend consulting the SAYOON DC Contactor Selection and Use Guide. These guides will provide you with essential information tailored to your specific application needs, ensuring optimal performance and reliability in your unique environment.

LOAD CHARACTERISTIC CURVE

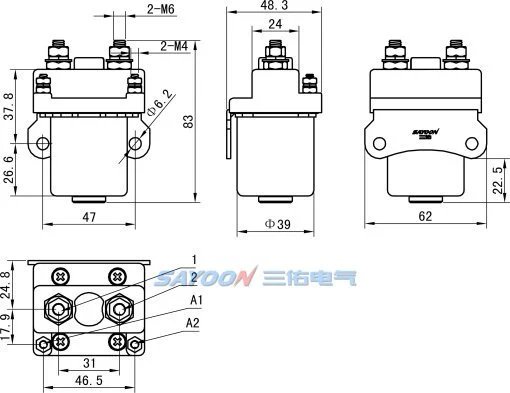

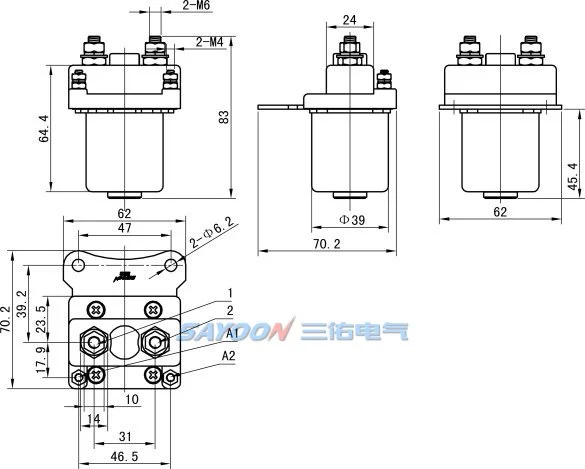

INSTALLATION DIAGRAM

WIRING DIAGRAM

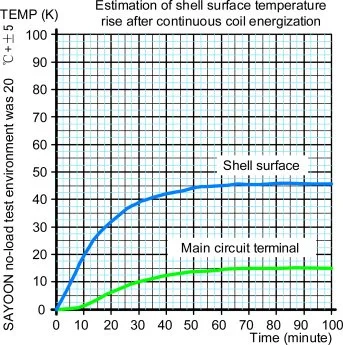

COIL TEMPERATURE CURVE

MECHANICAL ABILITY and USE of the ENVIRONMENT

Contact lead M6 tightening torque (N.m)	≯4.5 appropriate
Coil lead M4 tightening torque (N.m)	≯1.2 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International Protection	IP40 (According IEC60947)

ORDER INSTRUCTION

SAYOON Product Type	CZ10-150
U.N.W.	360g
Package QTY.	60 PCS
Meas.(cm)	53.521.519.5
G.W.	23kg
N.W.	21kg
Mounting bracket type	M Horizontal (default), E Level, H Inclined, K Wide distance, N Multi-functional vertical, DH Dismount inclined

The following information must be provided when ordering to ensure accurate processing: product name, complete model number, control coil voltage specification, required mounting frame type, whether auxiliary contacts are required, and required order quantity.

For example, you can specify the order as follows: “DC Contactor CZ10-150/24V, 100 pieces”. This indicates that you need a product with a rated load current of 150A, without any auxiliary contacts, and with the default mounting bracket. It is also stipulated that when purchasing 100 units, the coil control voltage should be 24V.

If you have specific requirements for voltage specifications that differ from the standard options, please note that these requirements can be accommodated by special order. We encourage you to communicate any unique needs you may have so we can provide you with the best product for your application.
