CZWH3000A-K Magnetic Holding DC Contactor

CZWH3000A-K 3000A Magnetic Latching DC Contactor: Specifications & Selection

The SAYOON CZWH3000A-K is a 3000A magnetic latching dc contactor for DC switching. Magnetic retention is used to maintain the selected contact state. The drive sequence and reset command must match the ordered coil configuration; confirm both before connecting a controller.

Rated load current
3000A at 48V DC
Contact voltage
≤60V DC
Contact arrangement
2 Circuit
Coil voltage examples
12V / 24V / 48V DC
Load terminals
M12 Screw
Duty type
Continuous

Applications & selection

Evaluate magnetic latching where the circuit must retain its commanded state without the operating behavior of a conventional continuously energized coil. Check pulse duration, polarity, set/reset wiring and the required state after control power is lost. Confirm switching duty at the actual bus voltage.

Specify your CZWH3000A-K configuration

For CZWH3000A-K, provide load voltage and current, required retained states, available set/reset signals, coil supply and mounting space. Request the drive diagram, contact arrangement and controller interface requirements with your quotation. See the technical information and drawings below for further details.

Overview

FEATURES

The magnetic latching DC contactor works similarly to a conventional contactor, but it incorporates innovative features that enhance its functionality. At its core, the contactor uses electromagnetic force to keep the contacts closed. This magnetic latching feature is particularly beneficial because it allows the contactor to remain closed when the supply current is below a certain threshold. This feature not only ensures continuity of the circuit, but also improves energy efficiency, making it ideal for a variety of applications.

SAYOON MODEL IMPLICATION

CZWH

3000A

-K

-C

-S

-□

-□

/24V

1

2

3

4

5

6

7

8

1

Product type: 1NO 1NC

2

Rated current

3

Magetic holding structure: K-Two joint magnetic retention (Single coil, Two joint self-locking); 2K-Three joint magnetic retention (Double coil, Three joint self-locking)

4

Magnetic blow-out

5

Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch

6

Mounting bracket type: 2L-Two vertical (default);  L-One vertical; M-Horizontal

7

Other function codes: l-With suppressor diode; R-With pre-charged resistance

8

Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product realizes zero power connection when working. Applicable to electroplating power supply, charging pile, telecommunication equipment, automation equipment, energy saving and environmental protection system, road traffic lighting system, program-controlled power supply and uninterruptible power supply equipment.

Technical Parameters:  (Version 1.39)

 SAYOON Product Type

 CZWH3000A-K

 Contact form  2 Circuit
 Coil Rated voltage (DC V)  6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.
 Contact voltage (DC V)  ≤60V
 Rated load current of contact 48V circuit (DC-1)  3000A
 Typical voltage drop across contacts per 100A  ≯80mV
 The cooling pull-in voltage at (20±5)℃ (V)  ≯80%
 The cooling drop-out voltage at (20±5)℃ (V)  ≯80%
 Working voltage range of 40℃ coil  0.8-1.2Us
 Pulse dration  200ms≤t≤1s
 Operating frequency(square wave)  1 minute≤6 times
 Insulation Resistance  100MΩ
 Electric strength to resist  50Hz/60Hz 2200VAC 1minute
 Typical fault currents which can be ruptured  4000A/5ms at 48V DC
 Coil power (W)  K Start: 30-42,2K Start: 60-82, Keep: 0
 Temperature rise of coil (K)  Normal temperature
 Temperature rise on outgoing terminal (K)  ≤65
 Electrical life  10,000 times
 Mechanical life  300,000 times
 Work specification  Continuous
 Contact material  Ag alloy
 Load terminal type  M12 Screw
 Coil terminal type  0.3 square wire,320mm long
 Auxiliary contact rated load (optional)  2A/48VDC, 5A/24VDC
 Testing organization certification  CE,FCC



Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

Load Characteristic Curve

  • fzsm-3000-10k
  • fzsj-3000-6000

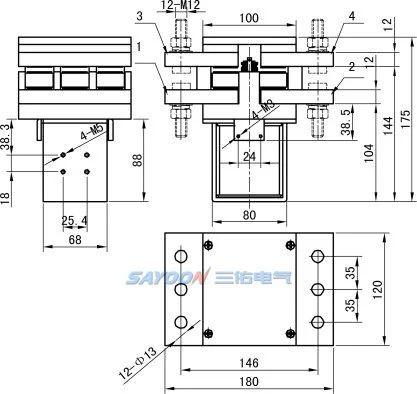

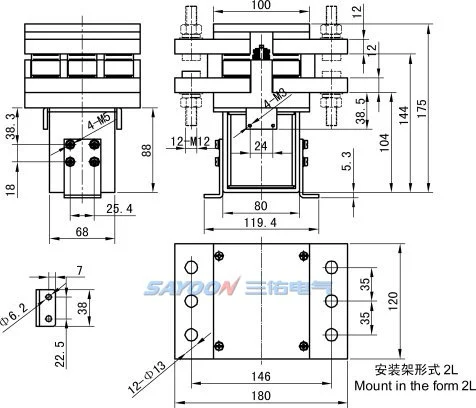

Installation Diagram

czwh3000aczwh3000a_1

Wiring Diagram

czwh-k_e

Other Wiring Diagram

czwh-2k_e

Mechanical Ability And Use Of The Environment

 Contact lead M12 tightening torque (N.m)  ≯30 appropriate
 Coil lead-out torque (N.m)  ≯0.8 appropriate
 Ambient temperature  -25~+70℃
 Relative humidity  +20℃ 98%
 Vibration freq. atthe fixed position  3G, 1~50Hz amplitude 0.5mm
 Concussion  (60~100) time/minute、acceleration≤4g
 Altitude  2000m
 Installation direction  Random
 International protection  IP40 (According IEC60947)

Order Instruction

 SAYOON Product Type

 CZWH3000A-K

 Package QTY.  4PCS
 Mounting bracket type  2L Two vertical (default), 1L One vertical, M Horizontal



When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: Magnetic Holding DC Contactor CZWH3000A-K/24V 100pcs, indicating the load rated current 3000A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
