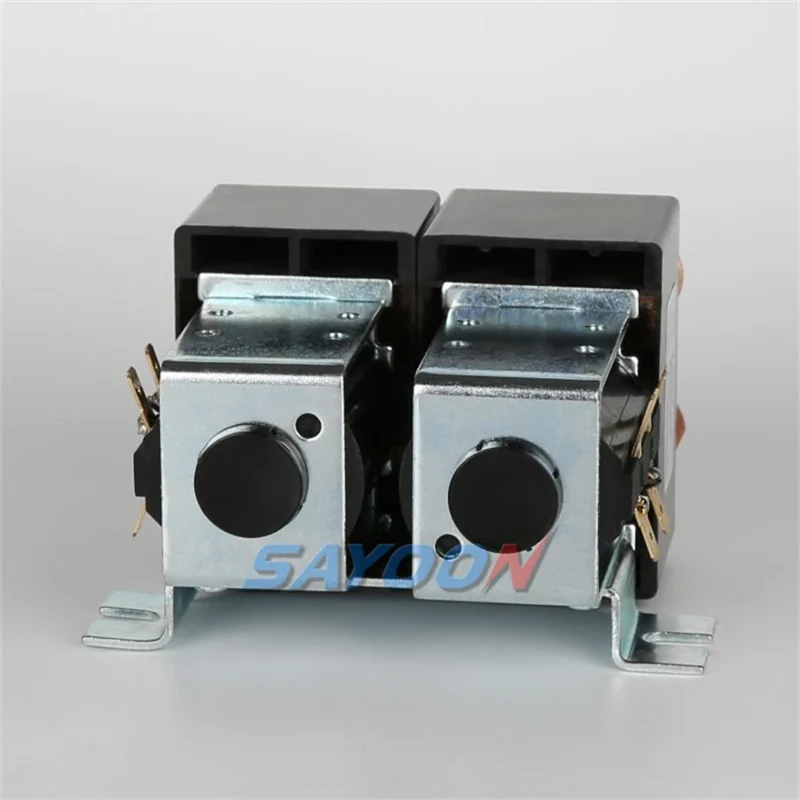

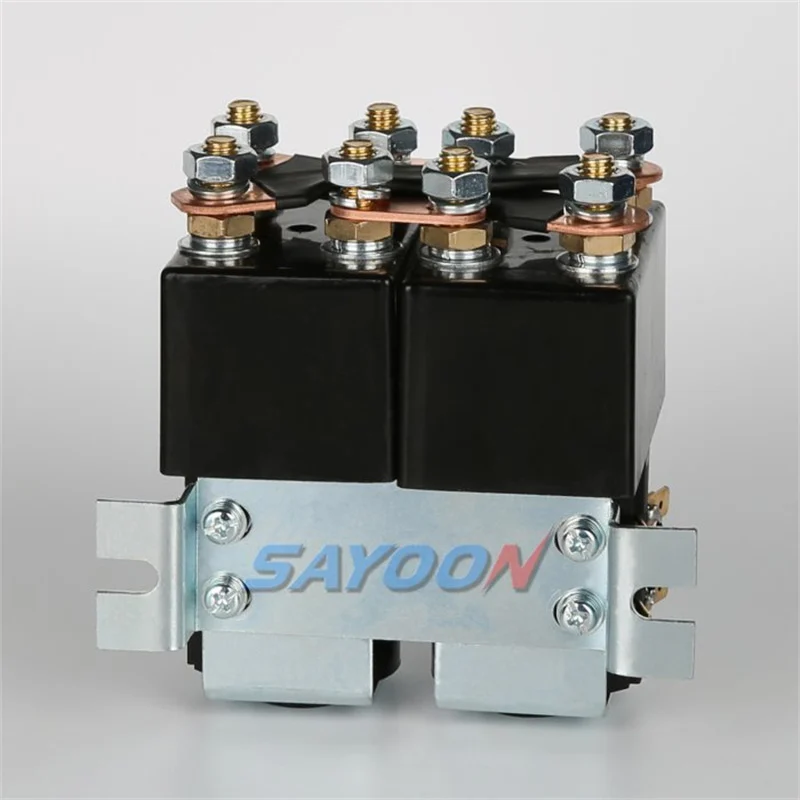

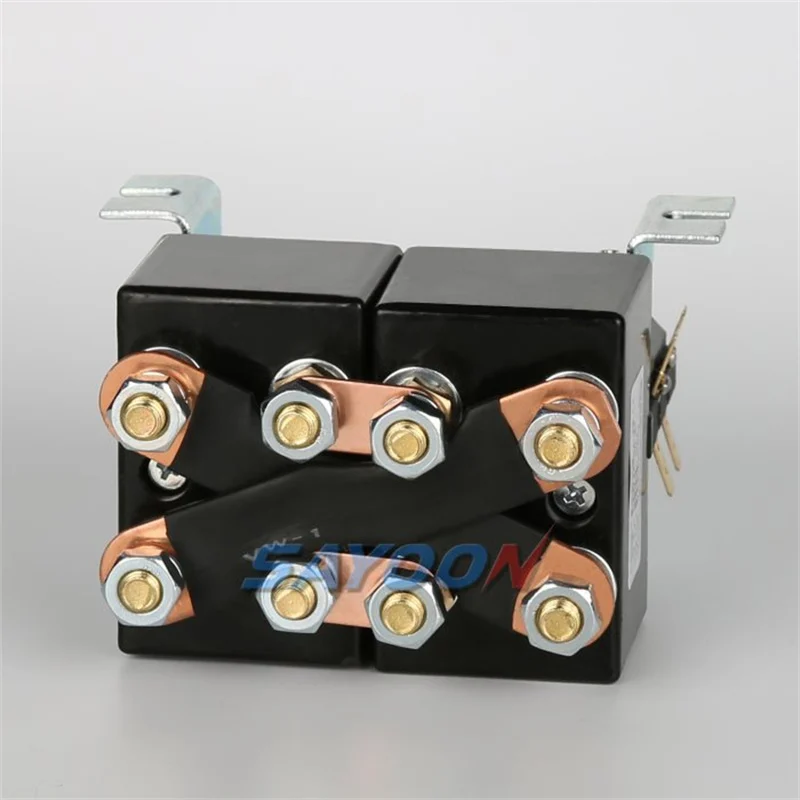

CZWJ200A-2T 4NO DC Contactor: Specifications & Selection
The SAYOON CZWJ200A-2T is a 4no dc contactor for DC switching. Check the circuit arrangement and terminal diagram to establish which contacts close, open or transfer together. Contact count alone does not establish a compatible replacement.
Applications & selection
For multiple normally open circuits, verify the number of poles, which paths operate together and the load on each path. Check controller sequencing and the terminal drawing; do not assume a multipole contactor provides direction reversal by itself.
Specify your CZWJ200A-2T configuration
For CZWJ200A-2T, send your circuit diagram, load voltage and current, required switching sequence, coil voltage, duty cycle and quantity. Request the terminal layout and confirmation of the exact contact configuration and mounting dimensions. See the technical information and drawings below for further details.
FEATURES
SAYOON MODEL IMPLICATION
|
CZWJ |
200A |
-2T |
-S |
-C |
-M |
-□ |
/24V |
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
1 |
Product type | ||||||||
|
2 |
Rated current | ||||||||
|
3 |
Circuit structure | ||||||||
|
4 |
Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch | ||||||||
|
5 |
Magnetic blow-out | ||||||||
|
6 |
Mounting bracket type: M-Horizontal (default); L-One vertical; 2L-Two vertical; 4L-Four vertical | ||||||||
|
7 |
Other function codes: l-With suppressor diode; R-With pre-charged resistance; CO-Continuous; IN-Intermittent | ||||||||
|
8 |
Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc. | ||||||||
