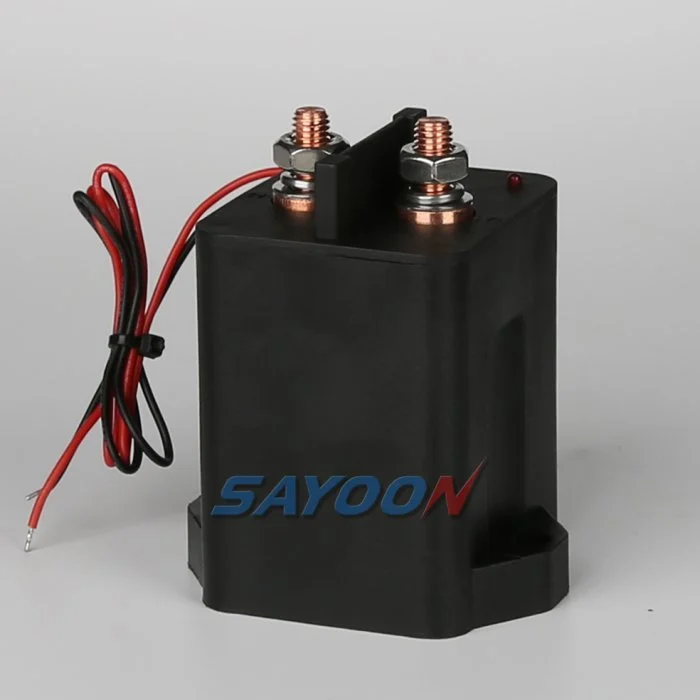

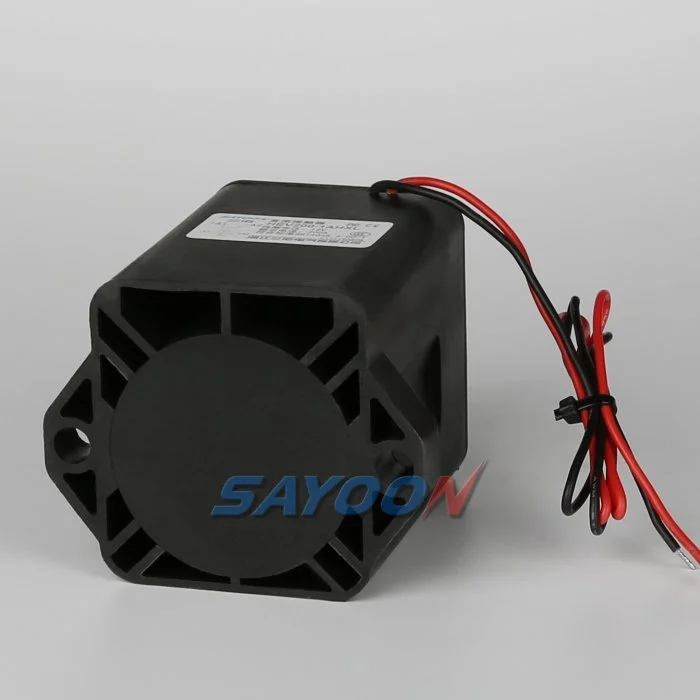

HEV200 200A Sealed DC Contactor: Specifications & Selection
The SAYOON HEV200 is a 200A epoxy resin sealed DC contactor for high-voltage DC switching. It is available with normally open or normally closed contacts, different coil voltages and optional auxiliary contacts. Select the complete model to match your load circuit and control supply.
- Rated load current
- 200A (DC-1)
- Contact voltage options
- 200V / 1000V DC
- Main contact options
- 1 NO / 1 NC
- Coil voltage examples
- 12V / 24V / 48V DC
- Load terminals
- M8 screw terminals
- Mounting bracket
- Vertical / horizontal
Applications & selection
Consider HEV200 for electric vehicle power circuits, EV charging equipment, UPS and other DC control systems. Confirm maximum DC voltage, continuous current, making and breaking duty, load type and ambient conditions before choosing a version. The voltage options above do not mean every version can interrupt 200A at 1000V DC.
Specify your HEV200 configuration
Send your DC bus voltage, load current, coil supply, NO/NC requirement, auxiliary contact requirement, bracket orientation and quantity. Request the matching drawing and switching ratings with your quotation. See the technical tables and installation diagrams below for further details.
FEATURES
SAYOON MODEL IMPLICATION
|
HEV |
200 |
-7 |
A |
D |
X |
L |
-□ |
■ |
/12V |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
1 |
Product type: HEV one group circuits; HEVJ two group circuit | ||||||||
|
2 |
Rated current | ||||||||
|
3 |
Contact Rated Voltage: 1-200V; 7-1000V | ||||||||
|
4 |
Circuit structure: A-Normally open; B-Normally closed; F-Normally open with one auxiliary switch (the auxiliary switch and main contact have the same structure); G-One normally closed with one auxiliary (auxiliary switch and main contact have the same structure). (for other auxiliary switch structures, add 2 or 3 numbers after the model to describe the auxiliary switch structure) | ||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
5 |
Coil type: D-Single coil; H-With coil economizer; K-Two joint magnetic retention (Single coil, Two joint self-locking); 2K-Three joint magnetic retention (Double coil, Three joint self-locking); P-Signal control; R-Built-in pre charging type [relay drive] (the left digit of the pre charging function is the pre charging delay time, used to control the coil, the right digit is the resistance value with resistance); Y-External pre charging [MOS driver] (The left digit of the pre charging function is the pre charging delay time, and the right digit is used as a lead for controlling the coil. If it is greater than 1, it is the resistance value of the live resistance) | ||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
6 |
Coil outgoing mode: X-Wire (390mm); O-Other | ||||||||
|
7 |
Mounting bracket type: L-Vertical (default); M-Horizontal | ||||||||
|
8 |
None: Auxiliary switch and main contact have the same structure (default); -2: The structure of auxiliary switch and main contact is opposite; -3: Special auxiliary switch structure | ||||||||
|
|
|||||||||
|
9 |
Other special functions: V-With capacitive type load; N-No polarity | ||||||||
|
10 |
Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc. | ||||||||
USES
TECHNICAL PARAMETERS: (Version 2.97)
|
SAYOON Product Type |
HEV200 |
| Contact form | 1 NO(SPST-NO) or 1NC(SPST-NC) |
| Coil Rated voltage (DC V) | DC6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,DC220V,AC220V etc. |
| Contact voltage (DC V) | 200V,1000V |
| Contact circuit rated load current (DC-1) | 200A |
| Typical voltage drop across contacts per 100A | ≯80mV |
| The cooling pull-in voltage at (20±5)℃ (V) | ≯70% |
| The cooling drop-out voltage at (20±5)℃ (V) | ≯35%,≮5% |
| Working voltage range of 40℃ coil | 0.8-1.2Us |
| Drop-out time (n/o contacts to open) | 30ms |
| Pull-in time (n/o contacts to close) | 5ms |
| Maximum bounce time for contact connection | 10ms |
| Maximum bounce time for contact disconnection | 7ms |
| Insulation Resistance | 100MΩ |
| Electric strength to resist | 50Hz/60Hz 2200VAC 1minute |
| Typical fault currents which can be ruptured | 1000A/5ms at 48V DC |
| Coil power (W) | D: 8-20; H: Start 30-50, Keep 1.5-4 |
| Temperature rise of coil (K) | ≤55 |
| Temperature rise on outgoing terminal (K) | ≤65 |
| Electrical life | 20,000 times |
| Mechanical life | 300,000 times |
| Work specification | Continuous |
| Contact material | Alloy |
| Inrush time (max) | 130ms |
| Maximum switching current | 2000A 320VDC (more than once) |
| Maximum switching power | 640kW |
| Load terminal type | M8 Screw |
| Coil terminal type | 0.3 square silicone wire, 390mm long |
| Auxiliary contact rated load (optional) | 3A/30VDC |
| Testing organization certification | CCC,CE,FCC,RoHS |
LOAD CHARACTERISTIC CURVE

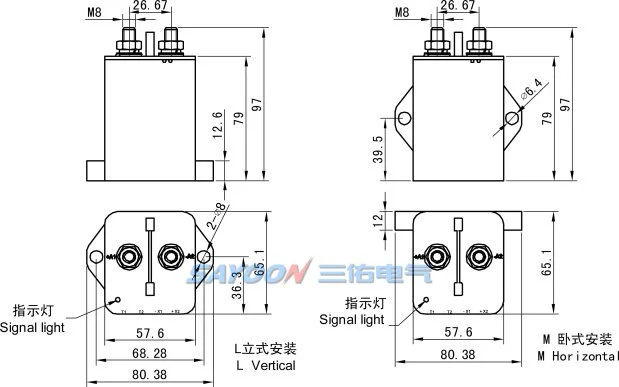

INSTALLATION DIAGRAM

WIRING DIAGRAM

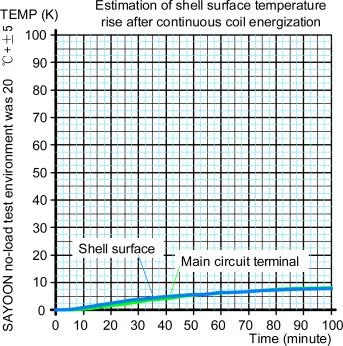

COIL TEMPERATURE CURVE

MECHANICAL ABILITY and USE of the ENVIRONMENT
| Contact lead M8 tightening torque (N.m) | ≯9.0 appropriate |
| Coil lead mode | Wire dipping tin (red positive and black negative) |
| Ambient temperature | -40~+85℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1~50Hz amplitude 0.5mm |
| Concussion | (60~100) time/minute、acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International Protection | IP68 |
ORDER INSTRUCTION
|
SAYOON Product Type |
HEV200 |
| U.N.W. | 710g |
| Mounting bracket type | L Vertical(default),M Horizontal |
