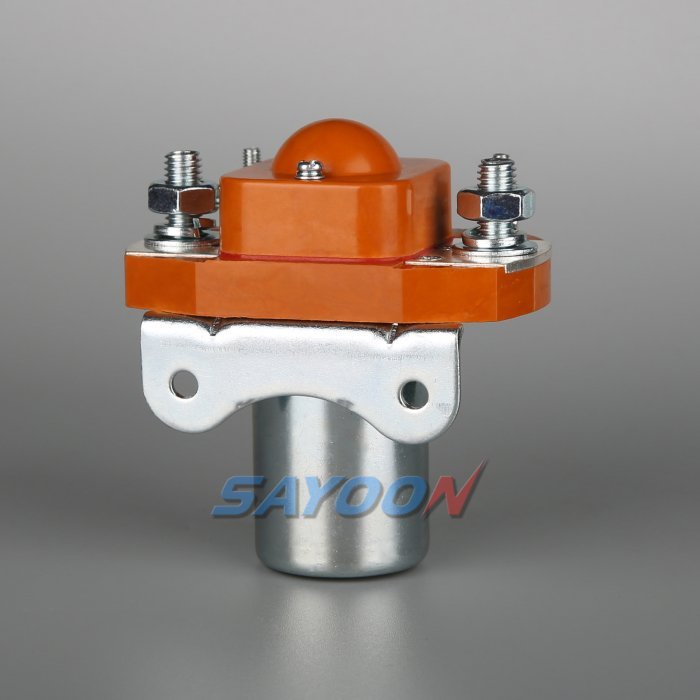

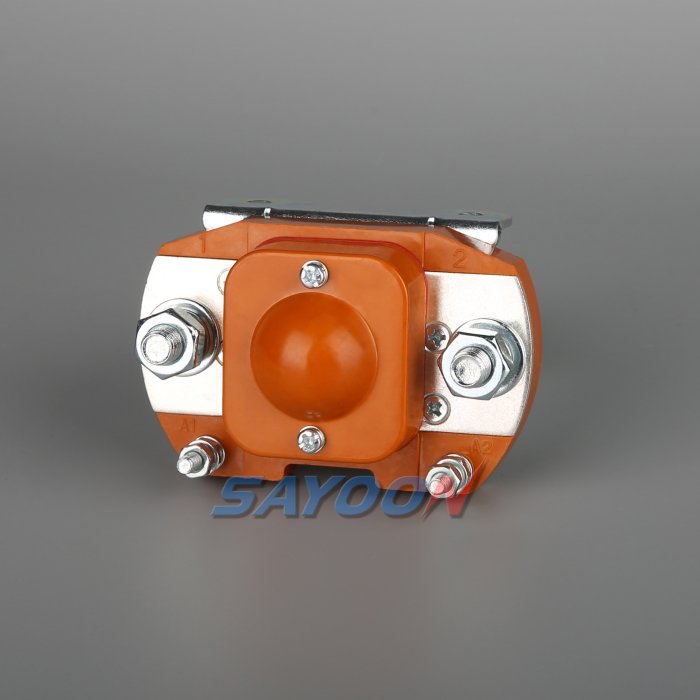

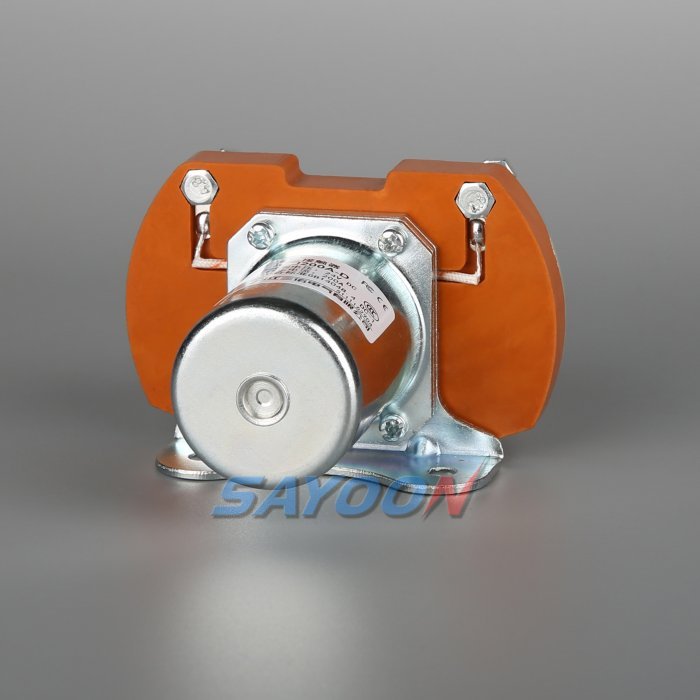

MZJ-300B 300A Normally Closed DC Contactor: Specifications & Selection
The SAYOON MZJ-300B is a 300A normally closed dc contactor for DC switching. A normally closed contact carries the circuit in its unenergized state and opens when the coil is actuated. Match this behavior to the control sequence before selecting the coil and mounting version.
- Rated load current
- 300A at 48V DC
- Contact voltage
- ≤60V DC
- Contact arrangement
- 1 NC
- Coil voltage examples
- 12V / 24V / 48V DC
- Load terminals
- M8 Screw
- Duty type
- Continuous
Applications & selection
Choose a normally closed contactor when the circuit must be connected in the coil-off state. Check what happens during loss of control power, confirm the load type and switching frequency, and verify that the opening duty suits the actual DC voltage and current.
Specify your MZJ-300B configuration
For MZJ-300B, provide the circuit diagram, DC voltage and load current, control supply, duty cycle, required auxiliary contacts and installation dimensions. Ask for the exact terminal drawing and confirmation of ratings for your configuration. See the technical information and drawings below for further details.
FEATURES
Suitable for electric forklift, battery cars, tractors, excavators, brick machine, cleaning vehicles, automotive air-conditioning, communication power supply, uninterruptible power supply, and electroplating electronic control system control circuits. Advantages include compact size, large load capacity, long service life and easy maintenance. Products are designed with reference to JB2286-78, JB3974-85, YD/585-92 and YD/T512-92 requirements.
SAYOON MODEL IMPLICATION
| MZJ | -300B | -S | -□ | -□ | /□ | ||||
| 1 | 2 | 3 | 4 | 5 | 6 | ||||
|
1 |
Product type | ||||||||
|
2 |
Rated current | ||||||||
|
3 |
Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch | ||||||||
|
4 |
Mounting bracket type: None-M Horizontal (default); E-Level embedded; X-Oblique; L(N)-Vertical; E1-Level embedded single direction | ||||||||
|
5 |
Other function codes | ||||||||
|
6 |
Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc. | ||||||||
USES
This product has one normally closed contact (1 NC), for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, and electronic control systems such as uninterruptible power supply.
TECHNICAL PARAMETERS: (Version 1.83)
|
SAYOON Product Type |
MZJ-300B |
| Contact form | 1 NC |
| Coil Rated voltage (DC V) | 6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc. |
| Contact voltage (DC V) | ≤60V |
| Rated load current of contact 48V circuit (DC-1) | 300A |
| Typical voltage drop across contacts per 100A | ≤80mV |
| The cooling pull-in voltage at (20±5)℃ (V) | ≤70% |
| The cooling drop-out voltage at (20±5)℃ (V) | ≤35%, ≥5% |
| Working voltage range of 40℃ coil | 0.8-1.2Us |
| Drop-out time (n/o contacts to open) | 10ms |
| Pull-in time (n/o contacts to close) | 20ms |
| Maximum bounce time for contact connection | 10ms |
| Maximum bounce time for contact disconnection | 3ms |
| Insulation resistance | 20MΩ |
| Electric strength to resist | 50Hz/60Hz 1000VAC 1minute |
| Typical fault currents which can be ruptured | 1000A/5ms at 48V/DC |
| Coil power (W) | 7-15 |
| Temperature rise of coil (K) | ≤80 |
| Temperature rise on outgoing terminal (K) | ≤65 |
| Electrical life | 20,000 times |
| Mechanical life | 300,000 times |
| Work specification | Continuous |
| Contact material | Ag alloy |
| Load terminal type | M8 Screw |
| Coil terminal type | M4 Screw |
| Auxiliary contact rated load (optional) | 2A/48VDC, 5A/24VDC,1NO 1NC |
| Testing organization certification | CE,FCC,RoHS |
Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

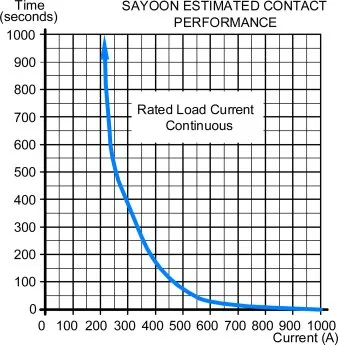

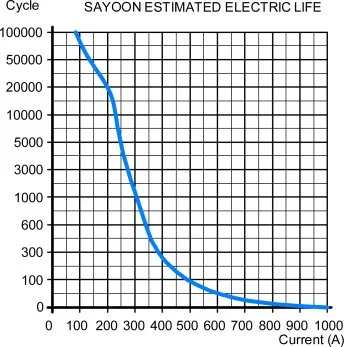

LOAD CHARACTERISTIC CURVE:

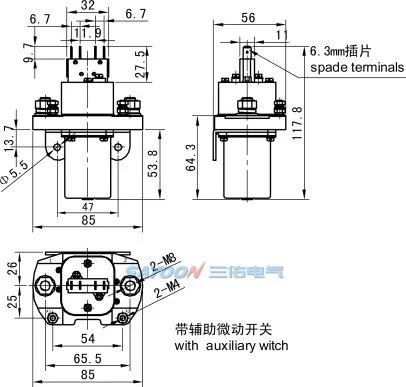

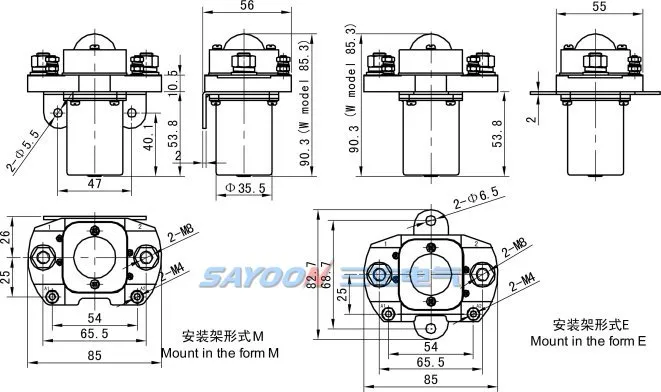

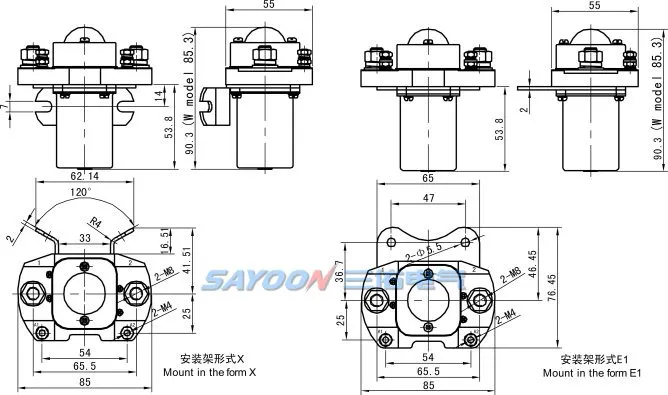

INSTALLATION DIAGRAM:



WIRING DIAGRAM:

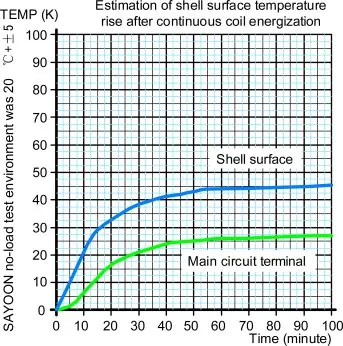

TEMPERATURE CURVE:

MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Contact lead M8 tightening torque (N.m) | ≯9.0 appropriate |
| Coil lead M4 tightening torque (N.m) | ≯1.2 appropriate |
| Ambient temperature | -25~+70℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1~50Hz amplitude 0.5mm |
| Shock | (60~100) times/minute, acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International Protection | IP40 (According IEC60947) |
ORDER INSTRUCTION:
|
SAYOON Product Type |
SZJB300A-D |
| U.N.W. | 530g |
| U.G.W. | 535g |
| Package QTY. | 50pcs |
| DIM.(cm) | 46.5*20.5*34.5 |
| Mounting bracket type | None – M Horizontal(default), E Level Embedded, X Oblique, L (N) Vertical, E1 Level embedded single direction |
When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor SZJB300A-D/24V 100pcs, indicating the load rated current 300A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
