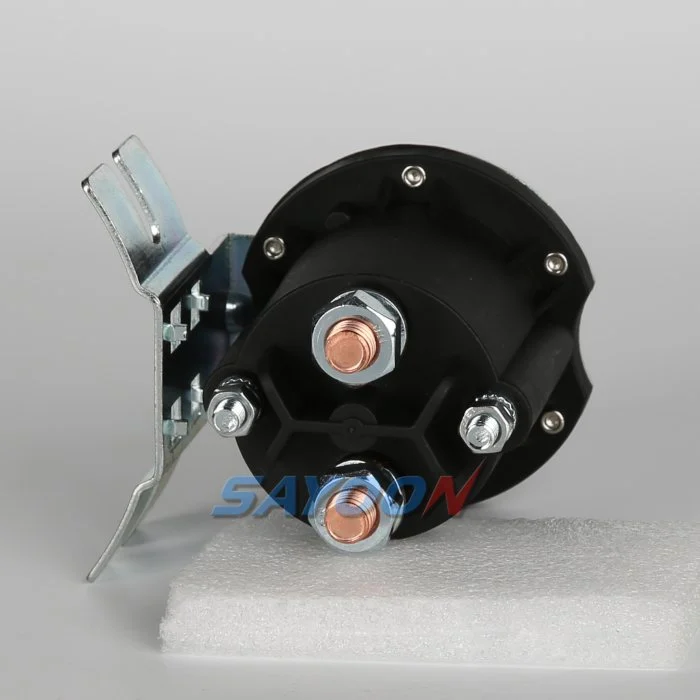

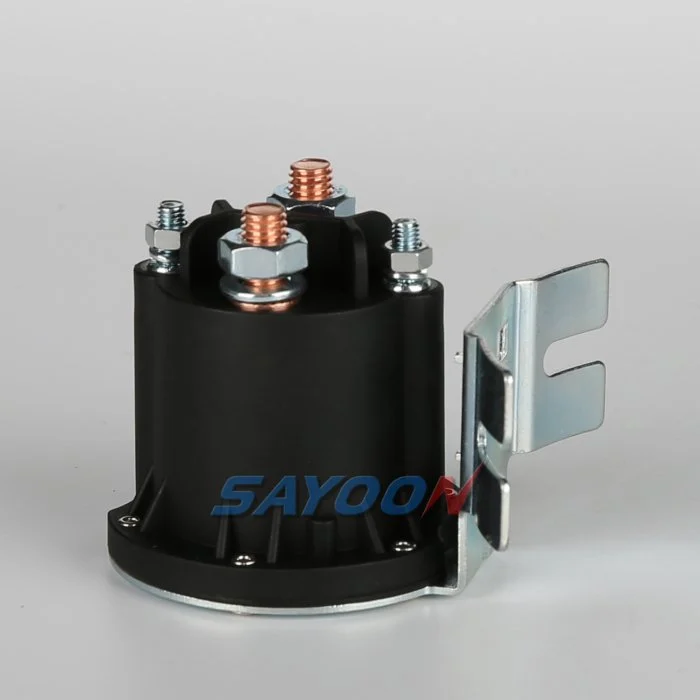

S684-200A 200A Starter DC Contactor: Specifications & Selection
The SAYOON S684-200A is a 200A starter dc contactor for DC switching. Select the coil supply and operating duty for the starting sequence, while checking the main contacts against the actual starting current and DC voltage.
- Rated load current
- 200A at 48V DC
- Contact voltage
- ≤80V DC
- Contact arrangement
- 1 NO
- Coil voltage examples
- 12V / 24V / 48V DC
- Load terminals
- M8 Screw
- Duty type
- Intermittent (default) or Continuous
Applications & selection
For starter circuits, review starting-current peaks, crank duration, recovery time and starts per hour. An intermittent-duty version must not be treated as continuously energized unless the ordered specification permits it. Confirm the required coil and contact ratings separately.
Specify your S684-200A configuration
For S684-200A, send system voltage, coil supply, expected starting current, crank duration, rest interval and quantity. Ask for the permitted duty cycle, terminal drawing and mounting dimensions for the selected version. See the technical information and drawings below for further details.
FEATURES
SAYOON MODEL IMPLICATION
|
S684 |
-200A |
-H |
-□ |
/24V |
|
|
1 |
2 |
3 |
4 |
5 |
|
1 |
Product type | ||||||||
|
2 |
Rated current | ||||||||
|
3 |
Mounting bracket type: H-Arc (default); M-Horizontal; L-One vertical | ||||||||
|
4 |
Working mode: INT-Intermittent (default); CO-Continuous | ||||||||
|
5 |
Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc. | ||||||||
USES
TECHNICAL PARAMETERS: (Version 1.35)
|
SAYOON Product Type |
S684-200A |
| Contact form | 1 NO |
| Coil Rated voltage (DC V) | 6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc. |
| Contact voltage (DC V) | ≤80V |
| Rated load current of contact 48V circuit (DC-1) | 200A |
| Typical voltage drop across contacts per 100A | ≯80mV |
| The cooling pull-in voltage at (20±5)℃ (V) | ≯70% |
| The cooling drop-out voltage at (20±5)℃ (V) | ≯35%,≮5% |
| Working voltage range of 40℃ coil | 0.8-1.2Us |
| Drop-out time (n/o contacts to open) | 30ms |
| Pull-in time (n/o contacts to close) | 5ms |
| Maximum bounce time for contact connection | 10ms |
| Maximum bounce time for contact disconnection | 3ms |
| Insulation Resistance | 20MΩ |
| Electric strength to resist | 50Hz/60Hz 1000VAC 1minute |
| Typical fault currents which can be ruptured | 800A/5ms at 48V DC |
| Coil power (W) | IN: 18-30 (default)/CO: 9-15 |
| Temperature rise of coil (K) | ≤80 |
| Temperature rise on outgoing terminal (K) | ≤65 |
| Electrical life | 20,000 times |
| Mechanical life | 300,000 times |
| Work specification | Intermittent (default) or Continuous |
| Load terminal type | M8 Screw |
| Coil terminal type | M5 Screw |

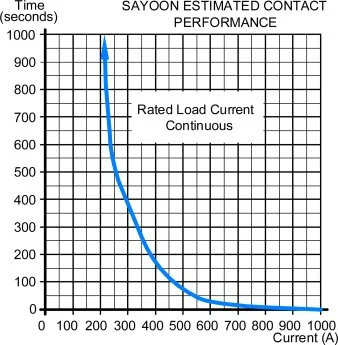

LOAD CHARACTERISTIC CURVE

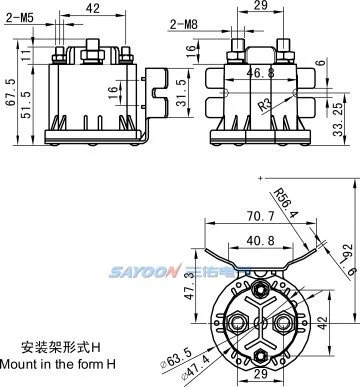

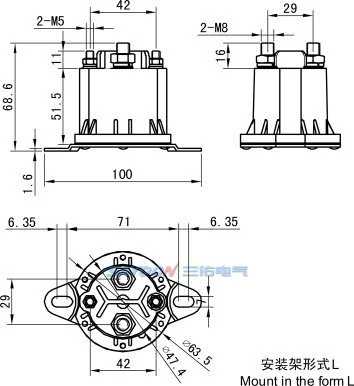

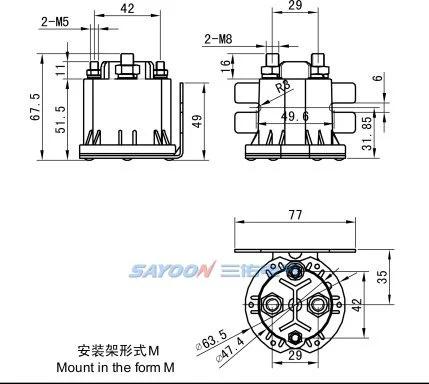

INSTALLATION DIAGRAM



WIRING DIAGRAM

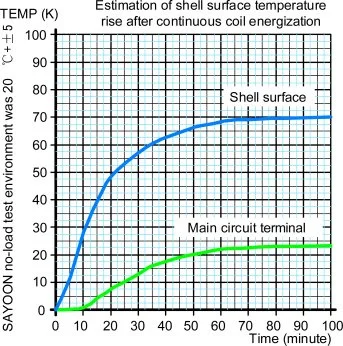

COIL TEMPERATURE CURVE

MECHANICAL ABILITY and USE of the ENVIRONMENT
| Contact lead M8 tightening torque (N.m) | ≯9.0 appropriate |
| Coil lead M5 tightening torque (N.m) | Rose≯0.8 appropriate,spade terminals≯0.8 appropriate |
| Ambient temperature | -40~+85℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1~50Hz amplitude 0.5mm |
| Concussion | (60~100) time/minute、acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International Protection | IP67 (According IEC60947) |
ORDER INSTRUCTION
|
SAYOON Product Type |
S684-200A |
| U.N.W. | 390g |
| Mounting bracket type | H-arc (default), M Horizontal,L One vertical |
