Overview

FEATURES

1. DC high-voltage power supply: The product is filled with rare mixed gases and has excellent arc cooling capabilities to ensure safe operation in high-voltage environments.

2. Control load capability: Supports loads from 30A to 1000A, and the operating voltage range is 5-1000VDC, adapting to a variety of application needs.

3. Safety: Using an insulating structure, it can work safely in flammable or hazardous environments. The coils and contacts will not be oxidized or contaminated, ensuring the long-term stability of the equipment.

4. Small and lightweight: Compared with similar products, it is smaller, lighter, and consumes less power, making it easy to install and use.

This product complies with JB2286-78, JB3974-85, YD/585-92, YD/T512-92 and other standard requirements. It has been inspected by the factory and relevant testing units to ensure that it meets the standard specifications. Users can use it with confidence and meet the maximum satisfaction for a long time. User needs, reliable quality.

Application areas

– Electric vehicles

– Solar power generation system

– Energy storage system

– Industrial automation equipment

– Ships and rail transportation

The SEV250AH high-voltage epoxy resin sealed DC contactor is an ideal choice for your high-voltage applications. With its excellent performance and reliability, it helps your equipment operate efficiently and safely.

SAYOON MODEL IMPLICATION

SEV	250	A	H	X	L	-□	■	/12V
1	2	3	4	5	6	7	8	9

1	Product type
2	Rated current
3	Circuit structure: A-Normally open; B-Normally closed; F-Normally open with one auxiliary switch (the auxiliary switch and main contact have the same structure); G-One normally closed with one auxiliary (auxiliary switch and main contact have the same structure). (for other auxiliary switch structures, add 2 or 3 numbers after the model to describe the auxiliary switch structure)
4	Coil type: D-Single coil; H-With coil economizer; K-Two joint magnetic retention (Single coil, Two joint self-locking); 2K-Three joint magnetic retention (Double coil, Three joint self-locking); P-Signal control
5	Coil outgoing mode: X-Wire (390mm); P-Spade terminals (4.8); W-Thread (M4); O-Other
6	Mounting bracket type: L-Vertical (default)
7	None: Auxiliary switch and main contact have the same structure (default); -2: The structure of auxiliary switch and main contact is opposite; -3: Special auxiliary switch structure
8	Other special functions: V-With capacitive type load; N-No polarity
9	Coil rated voltage: 12V, 24V, 48V, 9-36V, 48-72V etc.

USES

The utility model has the advantages that the utility model is provided with one normally open contact, which is suitable for charging piles, electric four wheeled vehicles, new energy vehicles, energy saving and environmental protection systems, road traffic lighting systems, programmable power supply and uninterruptible power supply equipment.

TECHNICAL PARAMETERS: (Version 2.82)

SAYOON Product Type	SEV250AH
Contact form	1 NO(SPST-NO) or 1NC(SPST-NC)
Coil Rated voltage (DC V)	12-24V, 36-48V, 60-72V, 9-36V etc.
Contact voltage (DC V)	5-1000V
Contact circuit rated load current (DC-1)	250A
Typical voltage drop across contacts per 100A	≯80mV
The cooling pull-in voltage at (20±5)℃ (V)	≯70%
The cooling drop-out voltage at (20±5)℃ (V)	≯35%,≮5%
Working voltage range of 40℃ coil	0.8-1.2Us
Drop-out time (n/o contacts to open)	80ms
Pull-in time (n/o contacts to close)	20ms
Maximum bounce time for contact connection	10ms
Maximum bounce time for contact disconnection	7ms
Insulation Resistance	100MΩ
Electric strength to resist	50Hz/60Hz 2200VAC 1minute
Typical fault currents which can be ruptured	1000A/5ms at 48V DC
Coil power (W)	H: Start 30-50, Keep 1.5-5
Temperature rise of coil (K)	≤45
Temperature rise on outgoing terminal (K)	≤65
Electrical life	20,000 times
Mechanical life	300,000 times
Work specification	Continuous
Contact material	Alloy
Inrush time (max)	130ms
Maximum switching current	2000A 320VDC (more than once)
Maximum switching power	640kW
Load terminal type	M8 Screw
Coil terminal type	0.3 square silicone wire, 390mm long
Auxiliary contact rated load (optional)	3A/30VDC
Testing organization certification	CCC, CE, FCC, RoHS

Note: As regarding to the different using environments of customers which requires different focus of the functions, and in order to improve the comprehensive properties of our products, sayoon may adjust the coil parameters, temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

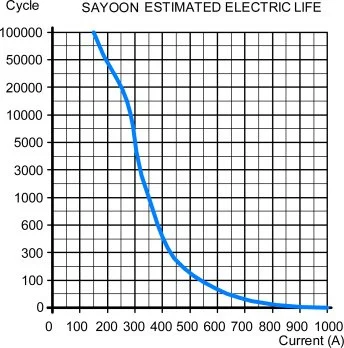

LOAD CHARACTERISTIC CURVE

INSTALLATION DIAGRAM

WIRING DIAGRAM

COIL TEMPERATURE CURVE

MECHANICAL ABILITY and USE of the ENVIRONMENT

Contact lead M8 tightening torque (N.m)	≯9.0 appropriate
Coil lead mode	Wire dipping tin (red positive and black negative)
Ambient temperature	-40~+85℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
Concussion	(60～100) time/minute、acceleration≤4g
Altitude	2000m
Installation direction	Random
International Protection	IP68

ORDER INSTRUCTION

SAYOON Product Type	SEV250AH
U.N.W.	409g
Mounting bracket type	L Vertical(default)

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: HV DC Contactor SEV200AH-□-□/24V 100pcs, indicating the load rated current 200A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
