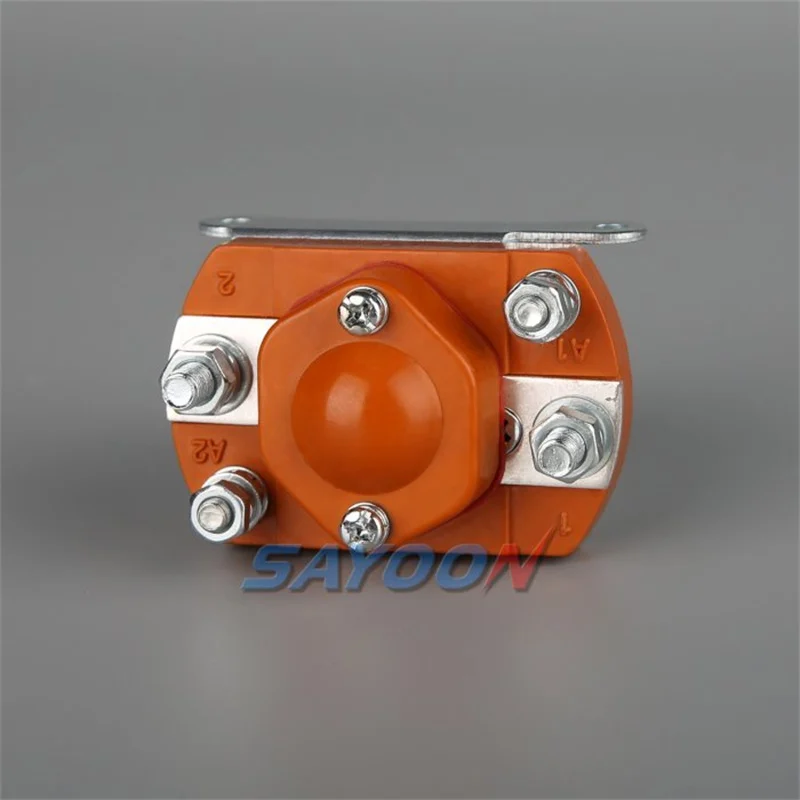

SZJ50A-D Normally Open DC Contactor

SZJ50A-D 50A Normally Open DC Contactor: Specifications & Selection

The SAYOON SZJ50A-D is a 50A normally open dc contactor for DC switching. Its normally open contact closes when the coil is energized, allowing the control circuit to switch a separate DC load. Select the coil voltage independently from the main-circuit voltage.

Rated load current
50A at 48V DC
Contact voltage
≤60V DC
Contact arrangement
1 NO
Coil voltage examples
12V / 24V / 48V DC
Load terminals
M5 Screw
Duty type
Continuous

Applications & selection

Use the normally open arrangement where the load should be disconnected in the coil-off state. Review continuous current, motor starting or capacitive inrush, switching frequency and ambient temperature. Confirm DC making and breaking ratings rather than selecting solely by the current in the model name.

Specify your SZJ50A-D configuration

For SZJ50A-D, send the load voltage and current, load type, required coil supply, operating duty, auxiliary contact needs, mounting dimensions and quantity. Confirm terminal connections and the selected version against the installation drawing. See the technical information and drawings below for further details.

Overview

FEATURES

The widespread application of normally open DC contactors is not only reflected in the traditional industrial field, but also extends to emerging fields such as smart homes, the Internet of Things, and electric vehicles. In smart home systems, contactors can be used to control the switches of lighting, air conditioning, and other electrical appliances to improve user convenience and comfort. At electric vehicle charging stations, normally open DC contactors are used to manage the charging process to ensure safety and efficiency. Understanding the diverse applications of normally open DC contactors is an important step for electrical engineers and technicians to improve their professional capabilities and meet future technological challenges.

SAYOON MODEL IMPLICATION

SZJ

50A

-D

-□

/□

1

2

3

4

5

1

Product type

2

Rated current

3

Coil type: D-Single coil structure

4

Mounting bracket type: None-M Horizontal (default); E1-Level embedded single direction; L(N)-Vertical

5

Coil rated voltage: 12V, 24V, 36V, 48V, 60V, 72V etc.

Uses

This product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.

Technical Parameters:  (Version 1.34)

 SAYOON Product Type

 SZJ50A-D

 Contact form  1 NO
 Coil Rated voltage (DC V)  6V,12V,24V,36V,48V,60V,72V,84V,120V,150V etc.
 Contact voltage (DC V)  ≤60V
 Rated load current of contact 48V circuit (A)  50A
 Rate load current of contact circuit  ≯80mV
 The cooling pull-in voltage at (20±5)℃ (V)  ≯70%
 The cooling drop-out voltage at (20±5)℃ (V)  ≯35%,≮5%
 Working voltage range of 40℃ coil  0.8-1.2Us
 Drop-out time (n/o contacts to open)  15ms
 Pull-in time (n/o contacts to close)  5ms
 Maximum bounce time for contact connection  10ms
 Maximum bounce time for contact disconnection  3ms
 Insulation resistance  20MΩ
 Electric strength to resist  50Hz/60Hz 1000VAC 1minute
 Typical fault currents which can be ruptured  600A/5ms at 48V DC
 Coil power (W)  4-9
 Temperature rise of coil (K)  ≤60
 Temperature rise on outgoing terminal (K)  ≤65
 Electrical life  20,000 times
 Mechanical life  300,000 times
 Work specification  Continuous
 Contact material  Ag alloy
 Load terminal type  M5 Screw
 Coil terminal type  M4 Screw
 Testing organization certification  CCC,CE,FCC,RoHS



Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.

Load Characteristic Curve

  • fzsm-50-20k
  • fzsj-50-500

Installation Diagram

szj50a-d

Wiring Diagram

szj-10-d_e

Temperature Curve

xqws-szj100a-d

Mechanical Ability And Use Of The Environment

 Contact lead M5 tightening torque (N.m)  ≯2.5 appropriate
 Coil lead M4 tightening torque (N.m)  ≯1.2 appropriate
 Ambient temperature  -25~+70℃
 Relative humidity  +20℃ 98%
 Vibration freq. atthe fixed position  3G, 1~50Hz amplitude 0.5mm
 Concussion  (60~100) time/minute、acceleration≤4g
 Altitude  2000m
 Installation direction  Random
 International Protection  IP40 (According IEC60947)

Order Instruction

 SAYOON Product Type

 SZJ50A-D

 U.N.W.  173g
 U.G.W.  189g
 Package QTY.  100PCS
 Mounting bracket type  None – M Horizontal (default), E1 Level embedded single direction, L (N) Vertical



When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: DC Contactor SZJ50A-D/24V 100pcs, indicating the load rated current 50A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.
