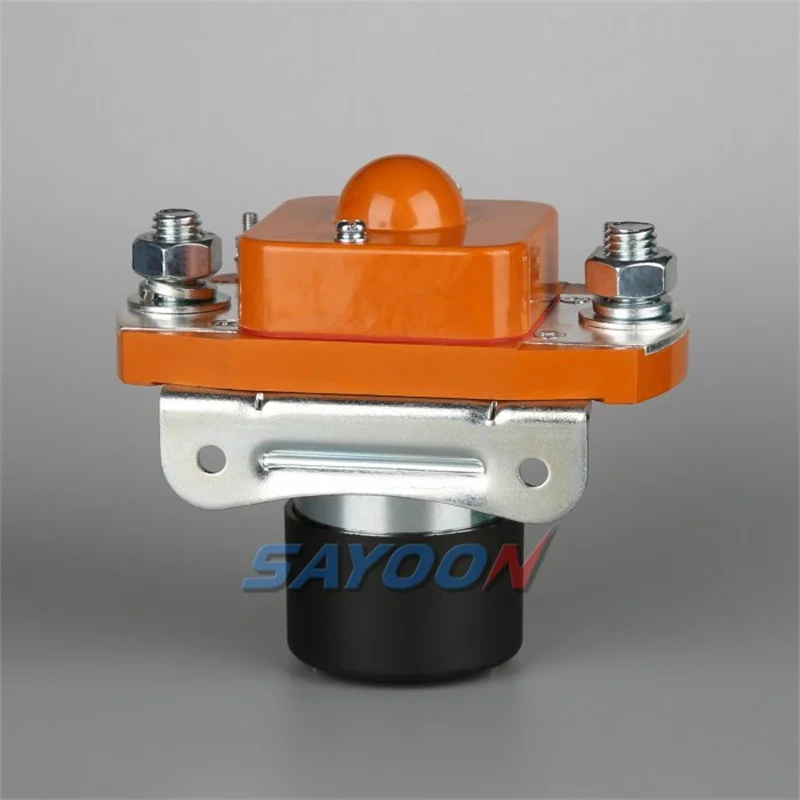

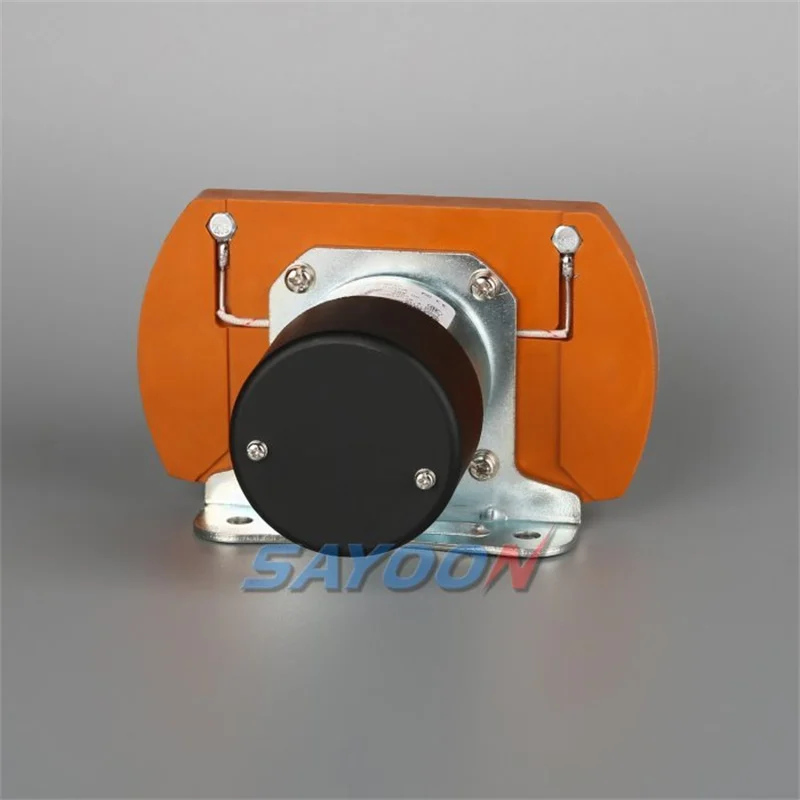

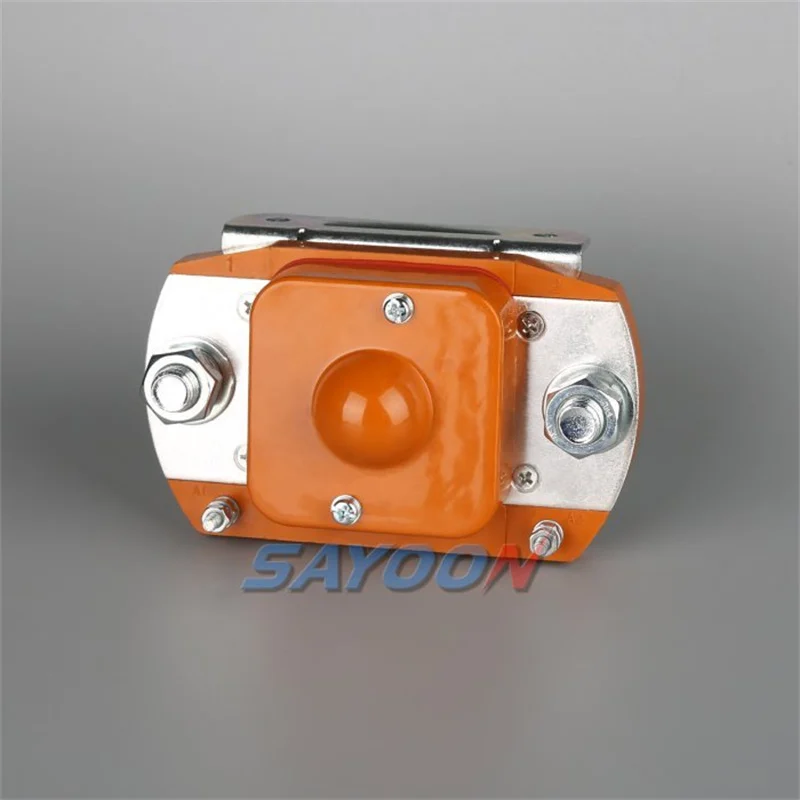

SZJB600A Normally Closed DC Contactor

SZJB600A Normally Closed DC Contactor: Specifications & Selection

The SAYOON SZJB600A is a normally closed dc contactor for DC switching. A normally closed contact carries the circuit in its unenergized state and opens when the coil is actuated. Match this behavior to the control sequence before selecting the coil and mounting version.

Contact arrangement
Normally closed (NC)
Configuration
Model-specific drawing
Control supply
Confirm coil voltage
Mounting
Confirm bracket and dimensions

Applications & selection

Choose a normally closed contactor when the circuit must be connected in the coil-off state. Check what happens during loss of control power, confirm the load type and switching frequency, and verify that the opening duty suits the actual DC voltage and current.

Specify your SZJB600A configuration

For SZJB600A, provide the circuit diagram, DC voltage and load current, control supply, duty cycle, required auxiliary contacts and installation dimensions. Ask for the exact terminal drawing and confirmation of ratings for your configuration. See the technical information and drawings below for further details.

Overview

FEATURES

The operating principle of a normally closed DC contactor is relatively simple, yet very effective. In its default state, when the contactor is not energized, the contacts remain closed, allowing current to flow through the circuit. This design is particularly advantageous in applications where continuous power is required. When the contactor coil is energized, an electromagnetic force is generated, causing the contacts to open and break the circuit. This unique feature instantly interrupts the flow of current, making it an indispensable tool in safety and automation systems.

SAYOON MODEL IMPLICATION

SZJB

600A

-S

-□

-□

/24V

1

2

3

4

5

6

1

Product type

2

Rated current

3

Auxiliary switch: None-Without auxiliary switch; S-With auxiliary switch

4

Mounting bracket type: None-M Horizontal (default); E1-Level embedded single direction; L(N)-Vertical

5

Other function codes

6

Coil rated voltage: 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V etc.
