Быстрый ответ: Select an AGV motor contactor by evaluating both motoring and regenerative current across the complete route. Confirm maximum battery voltage, forward and reverse current, DC-link inrush and precharge, current at every opening event, emergency-stop behavior, coil supply, feedback, protection, thermal duty, vibration, and required life. Bidirectional carrying does not by itself prove bidirectional interruption, so the final AGV and drive controller must be validated together.
This guide turns agv motor contactor into a reviewable selection, validation, and service process. Authentic Sayoon product photographs are used as references, while every approval remains tied to the final machine, current product documents, applicable standards, and representative testing.
Decision table
| Состояние | Engineering concern | Требуемое действие |
|---|---|---|
| Acceleration or grade climb | High motoring current and heating | Measure peak, duration, repetition and voltage sag |
| Regenerative braking | Current returns toward battery | Confirm allowed direction and remove torque before opening |
| Power-up | DC-link capacitance creates inrush | Use verified precharge and bus-voltage checks |
| Emergency stop | Current may not be zero | Coordinate drive shutdown, protection and contactor duty |
Product reference and boundary

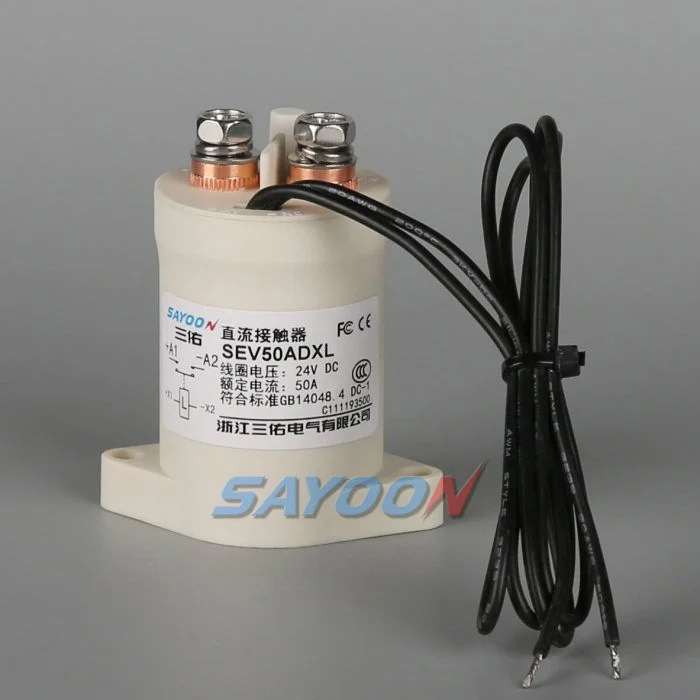

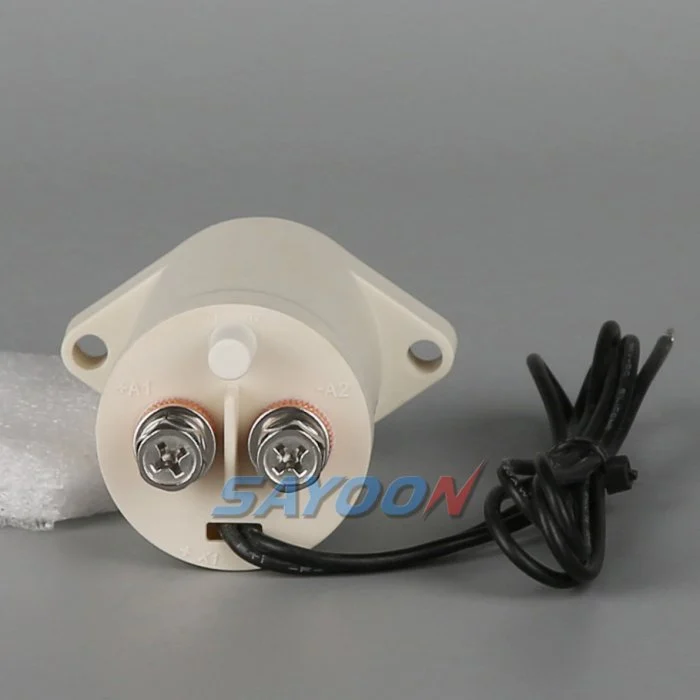

Эт SEV50ADXL sealed DC contactor is a real product example, not automatic approval for this application. Use the DC contactor guide hub и selection guide for supporting checks. Confirm the full ordering code, voltage, current direction, make and break duty, coil, feedback, environment, mounting, protection, and life.
Map all current directions
Draw the battery, positive and negative switches, precharge path, traction inverter, lift drive, charger, DC/DC converter, and service connector. Mark current direction during acceleration, coasting, regenerative braking, downhill travel, load lowering, towing, charging, and fault recovery.
Ask separately whether the product can carry current in either direction and interrupt the required current in either direction. Contact geometry, arc control, and polarity requirements can make these different approvals.
Coordinate regeneration before opening
For normal stops, command the drive to remove torque and verify current has fallen within the approved opening window. Define the fallback if communication is lost, the inverter does not acknowledge, or measured current persists.
An emergency response must follow the hazard analysis. Some faults require immediate protection action; others permit controlled current reduction. Include DC-link discharge and every source that may keep the bus energized after the battery contactor opens.
Validate representative routes
Test flat travel, maximum grade, rated payload, repeated starts, rapid deceleration, low and high state of charge, cold and hot operation, charging transitions, and realistic autonomous recovery attempts.
Compare current and temperature distributions across multiple vehicles. Record drive firmware, route, payload, tire condition, battery, ambient, and cooling so a later change can be evaluated against the validated envelope.
Start with measured machine duty
Record minimum and maximum battery voltage, charger state, current direction, peak and continuous current, event duration, starts per hour, cooling intervals, ambient temperature, and the longest approved operating cycle. Include cold starts, maximum payload, grades, rapid reversals, stalled mechanisms, emergency stops, and maintenance modes.
A motor label or nominal controller current is not a complete contactor duty. Battery resistance, cable drop, controller limits, hydraulic pressure, route geometry, operator behavior, firmware, and temperature all change the waveform. Capture command, coil voltage, main current, bus voltage, feedback, and temperature on one time base.
Separate carry, make, and break requirements
Continuous-current ratings describe thermal carrying under stated conditions. They do not automatically establish the ability to close into inrush, carry a short-duration overload, or interrupt inductive DC current. Define each event by voltage, current, direction, duration, inductance or time constant, repetition, and fault contribution.
Normal control should reduce current before opening when the architecture allows. Emergency and fault cases require a documented protection sequence. Coordinate the contactor with fuses, breakers, controller shutdown, and every parallel or regenerative source. Do not assign short-circuit clearing to a control contactor without explicit evidence.
Verify coil, driver, and release behavior
Confirm the exact coil option, nominal voltage, pickup and dropout behavior across the auxiliary-supply range, pull-in and hold current, economizer function, polarity, driver current limit, harness drop, and suppression. Measure voltage at the coil during pickup and hold.
A diode, TVS, economizer, or active clamp changes release time and stress. Low voltage can cause chatter and contact damage; excessive voltage can overheat the winding. Set timing and current checks from the final product, driver, cable, connector, supply, temperature, and test distribution.
Review installation and thermal paths
Check mounting orientation, conductor size, lug and busbar alignment, terminal hardware, controlled tightening, cable support, vibration, shock, contamination, moisture, enclosure airflow, adjacent heat sources, and access for inspection. Bench ratings may not represent a crowded vehicle compartment.
Do not use terminal studs to pull misaligned conductors into place. After assembly, inspect seating, washers, thread engagement, barriers, clearances, strain relief, and unintended mechanical load. Trend both terminal temperatures and the body under comparable current and ambient conditions.
Use feedback with electrical evidence
An auxiliary contact indicates mechanism position but does not measure resistance through the main path or prove absence of voltage. Correlate command, driver current, auxiliary state, main current, and voltage across the intended isolation boundary within validated timing windows.
Define responses for stuck-open, welded, delayed pickup, chatter, broken feedback wiring, driver faults, failed sensors, and back-feed. Preserve the first mismatch and raw traces. Block automatic restart whenever switching state or isolation cannot be proven.
Validate the complete system
Test production-intent contactors, controllers, conductors, protection, sensors, cooling, firmware, and enclosures. Cover voltage and temperature boundaries, the longest harness, maximum approved load, repeated cycles, representative regeneration or lowering, and safe fault injection.
Record part numbers, drawings, sample identity, software, instruments and calibration, raw waveforms, thermal conditions, acceptance limits, deviations, and reviewers. A successful no-load close-open test is not evidence for the complete vehicle duty.
Plan service and controlled replacement
Define inspection triggers for abnormal heat, odor, discoloration, chatter, delayed response, voltage drop, nuisance trips, and welded-state diagnostics. Isolate the battery and stored energy under the authorized procedure before touching terminals or replacing parts.
A visually similar solenoid or contactor may differ in coil, duty, polarity, suppression, feedback, mounting, protection coordination, and life. Approve alternates by full ordering code and test evidence, then repeat mechanical, coil, load, stop, isolation, and restart-inhibit checks after replacement.
Prepare the RFQ and change record
Provide battery and control voltage ranges, complete current waveforms, direction, make and break events, fault current, protection, driver and suppression, feedback, life target, switching frequency, environment, mounting, conductor design, standards, and required validation.
Reopen the decision after changes to the battery, charger, motor, pump, inverter, firmware, cable, fuse, coil driver, suppression, enclosure, cooling, route, payload, or maintenance process. Keep assumptions separate from supplier claims and measured results.
Before fleet release, run a documented review that connects every requirement to evidence. The review should identify the operating state, expected command, coil behavior, auxiliary response, main-circuit current, voltage on both sides of the switching boundary, temperature trend, protective-device state, and permitted recovery. Include uncertainty and the response when two signals disagree. Technicians need a controlled checklist for inspection, measurement, replacement, and post-repair testing, plus clear stop-work conditions for heat damage, arcing, unstable pickup, unexpected voltage, or an unverified open state. Keep training records and approved instruments aligned with the machine service procedure.
Purchasing controls matter as much as electrical selection. Store the manufacturer, complete ordering code, drawing revision, coil option, suppression, auxiliary arrangement, mounting interface, terminal hardware, approved alternates, inspection status, and supplier document revision. Incoming inspection should confirm identity and visible condition without treating a label match as functional approval. If a supplier, component, process, or firmware changes, compare the new configuration against the original waveforms, thermal results, timing limits, protection study, and service workflow before use.
Fleet acceptance and evidence
Create a controlled acceptance sheet with machine configuration, battery and controller versions, exact contactor code, approved conductors and hardware, required waveforms, temperature and timing evidence, fault-injection results, and sign-off authority. Compare pilot vehicles with healthy references across representative routes, loads, charging transitions, and environmental conditions. Retain event data and removed parts long enough for failure analysis.
