Forty-eight-volt traction packs dominate electric forklifts, walkie stackers, and many warehouse trucks. A 48v dc contactor in these systems is rarely decorative—it isolates the battery for service, connects traction after key-on logic, and must survive vibration, temperature swings, and thousands of shift cycles. This article maps where 48V contactors sit in real truck architectures, what differs from higher-voltage EV designs, and which datasheet fields maintenance teams actually use after installation. This guide focuses on practical evaluation steps for U.S. industrial and commercial buyers—measurement, documentation, and lifecycle support—not generic marketing claims. Where equipment selection is involved, cross-check public specifications on sayoon-dc.com and confirm coil voltage, duty cycle, and utilization category with your application engineer. Section checklists can be reused as RFQ attachments and commissioning handover outlines. Compare vendor datasheets at the same test voltage and category before shortlisting finalists.
Where 48V Contactors Sit in Forklift Electrical Architecture
Typical Class I/II electric forklifts place the main battery disconnect or traction connect contactor between the pack and the DC link feeding the motor controller. Auxiliary contactors may control hydraulic pumps or heating circuits on larger trucks.
Control voltage often comes from a 48V tap or a separate 12V/24V circuit—coil rating must match measured terminal voltage during cranking and lift peaks, not only open-circuit battery voltage.
Regenerative braking can push bus voltage above nominal; size contactor voltage class for peak regen, especially on trucks with aggressive deceleration profiles.
Industrial buyers should match continuous current to real duty cycle—not peak inrush alone—when comparing contactor datasheets.
Request electrical and mechanical life curves tested at your operating voltage class, not only at nominal catalog conditions.
Cross-check SAYOON DC contactor catalog for series that cover your voltage and ampacity before substituting part numbers.
Capture coil voltage, continuous current duty, and expected daily switching count in the RFQ so suppliers size contacts and categories correctly.
Verify utilization category (IEC DC-1 vs DC-3) against your load type—motor branches need different breaking duty than resistive battery connect.
Define acceptance tests before shipment—coil hold voltage, contact resistance, and dielectric checks—so commissioning disputes are less likely.
| Circuit | Typical location | Contactor function |
|---|---|---|
| Main traction | Battery to inverter/controller | Connect / emergency disconnect |
| Auxiliary hydraulics | DC link branch | Pump enable under interlock |
| Charger path | External charge port | Charge contactor or interlock (system dependent) |
| Service | Visible near battery | Lockout-friendly disconnect |
48V-Specific Sizing: Current, Duty, and Coil Hold
Forklift duty mixes long hold periods (operator on shift) with occasional high inrush when lifting heavy loads. Continuous current rating should reflect sustained drive current, not only peak ampacity for a few seconds.
Coil hold power heats the contactor enclosure in confined battery compartments—verify thermal rise when energized for entire shifts.
Mechanical life ratings assume a defined switching frequency; high-cycle distribution centers may need contact kits on shorter PM intervals.
IEC 60947-4-1 utilization categories DC-1 and DC-3 describe resistive versus motor-like breaking duty—misapplication shortens contact life.

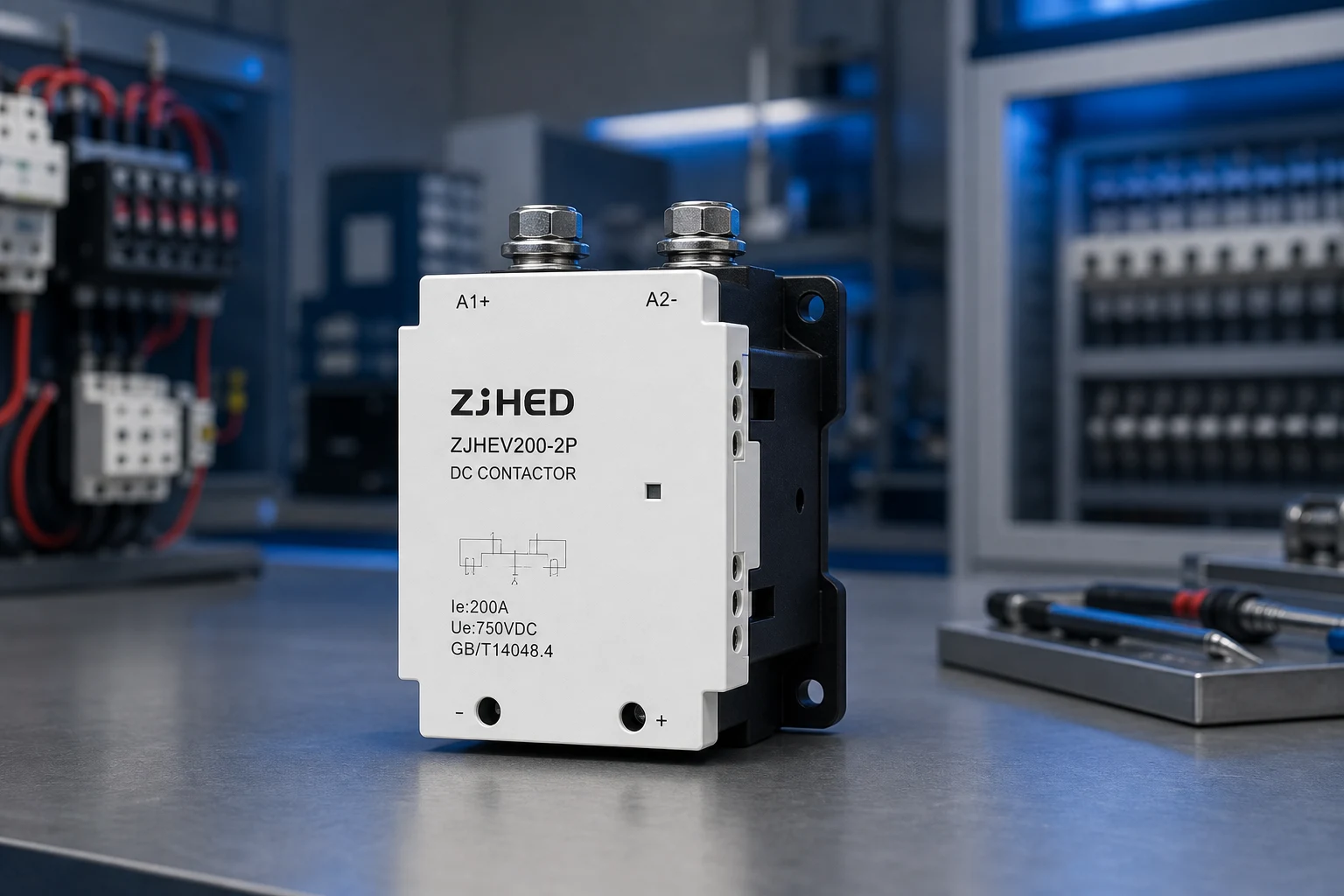

For forklift and AGV programs, compare CZW low-voltage DC contactor series compact form factors against available panel space and vibration ratings.
Bidirectional energy flow (regen or charge/discharge) may require a bidirectional contactor—confirm topology before ordering unidirectional parts.
Capture coil voltage, continuous current duty, and expected daily switching count in the RFQ so suppliers size contacts and categories correctly.
Verify utilization category (IEC DC-1 vs DC-3) against your load type—motor branches need different breaking duty than resistive battery connect.
Define acceptance tests before shipment—coil hold voltage, contact resistance, and dielectric checks—so commissioning disputes are less likely.
| Check | Forklift context | Common gap |
|---|---|---|
| Voltage class | 48V nominal, regen overshoot | Using 48V only, ignoring regen peak |
| Continuous I | Drive + accessory steady state | Sizing on 5 s peak only |
| Coil | 12V/24V/48V control feed | Undervoltage on long harness |
| Environment | Vibration, dust, battery gas | Indoor panel ratings on truck install |
Integration Notes for OEM and Retrofit Programs
Retrofit programs should confirm terminal orientation and torque specs against existing bus bars—compact CZW-family form factors help but are not drop-in without a layout review.
Interlock wiring (seat switch, brake pedal, key) must match fail-safe intent: normally open vs closed contacts affect what happens when coil power is lost.
Export programs should align imperial/metric lug sizes and document coil voltage on the same revision as the wiring diagram shipped to the field.
Post-installation, log contact resistance trends and coil voltage at terminals during routine PM intervals.
Explore OEM/ODM services when standard catalog coils, brackets, or labels need customization for export programs.
See SAYOON application solutions for forklift, EV, UPS, and marine use cases.
Capture coil voltage, continuous current duty, and expected daily switching count in the RFQ so suppliers size contacts and categories correctly.
Verify utilization category (IEC DC-1 vs DC-3) against your load type—motor branches need different breaking duty than resistive battery connect.
Define acceptance tests before shipment—coil hold voltage, contact resistance, and dielectric checks—so commissioning disputes are less likely.
Documentation Buyers Should Collect for 48V Fleet Programs
Fleet operators benefit from a standard handover pack: coil datasheet, contact resistance test procedure, spare contact kit part numbers, and mechanical life curve at 48V class.
When multiple truck models share a plant, normalize contactor part numbers in the CMMS to avoid stocking incompatible coils.
Post-installation, log contact resistance trends and coil voltage at terminals during routine PM intervals.
Explore OEM/ODM services when standard catalog coils, brackets, or labels need customization for export programs.
See SAYOON application solutions for forklift, EV, UPS, and marine use cases.
| Document | Why it matters | When |
|---|---|---|
| Coil inrush/hold chart | Size fuse and control relay | Design |
| Vibration summary | Truck mounting | Qualification |
| Spare contact kit PN | Downtime | Contract |
| Torque spec sheet | Field rework | Commissioning |
Field Commissioning and Fleet Maintenance
After installation, measure coil voltage at the contactor during lift and travel—not only key-on in the shop.
Log contact resistance baseline after first week of operation; rising values often precede overheating under continuous hold.
Train technicians on battery LOTO upstream of the contactor and on discharge timing for any capacitive loads on the DC link.
Post-installation, log contact resistance trends and coil voltage at terminals during routine PM intervals.
Explore OEM/ODM services when standard catalog coils, brackets, or labels need customization for export programs.
See SAYOON application solutions for forklift, EV, UPS, and marine use cases.
Review nameplate data, environmental limits, and switching duty annually or after any major load change on the feeder.
Document as-built coil driver circuits and fuse sizes so future retrofits do not undervoltage the coil under peak plant load.
Recommended SAYOON Products
For project support, explore our related product line, solution options, and OEM/ODM capabilities on sayoon-dc.com.
FAQ
What is a 48V DC contactor used for?
A 48V DC contactor remotely switches high-current DC circuits in battery-powered equipment such as electric forklifts, AGVs, and auxiliary distribution branches. It separates control logic (coil) from the power path (main contacts).
Can I use an AC contactor on a 48V DC system?
No—AC contactors rely on current zero-crossing to extinguish arcs. DC loads sustain arcs at 48V, risking contact welding. Use a DC-rated contactor with appropriate contact gap and arc management.
How do I size a 48V DC contactor for a forklift?
Match continuous current to the load duty cycle, verify coil voltage (24V or 48V control), and select IEC utilization category (often DC-3 for motor loads). Include margin for inrush if the duty cycle is intermittent.
What is the difference between a 48V DC contactor and a relay?
Contactors handle higher continuous currents and frequent switching in power circuits; relays typically serve lower-power control. For traction or main battery paths, specify a contactor rated for your ampacity and cycle life.
When is arc suppression required at 48V DC?
Inductive loads (motors, solenoids) produce longer arcing. Specify magnetic blowout or arc chutes when L/R is significant; resistive battery connect/disconnect may use simpler DC-1 rated devices per your study.
Does SAYOON offer OEM 48V DC contactor options?
SAYOON publishes CZW and SZJ low-voltage DC contactor series with OEM/ODM support on sayoon-dc.com. Confirm coil voltage, terminals, and ratings against your datasheet before ordering.
