DC contactor auxiliary contact troubleshooting should verify the signal circuit separately from the main power path. Confirm the exact NO/NC arrangement, terminal map, wetting current, PLC input behavior, coil command, mechanical timing, connector condition, and expected state in each operating mode. An auxiliary signal reports a mechanism-related state; it does not by itself prove that the main contacts carried or interrupted the required current. This guide provides an engineering review method, not a universal pass/fail value.
Key evidence to collect
| Review item | Evidence to collect | Why it matters |
|---|---|---|
| Terminal identity | Approved drawing and continuity map | Prevents confusing coil, main, and auxiliary terminals |
| Expected state | NO/NC state with coil off and on | Defines the correct truth table |
| Signal load | PLC input voltage/current or relay load | Too little or too much current can distort behavior |
| Timing | Auxiliary transition versus coil and main path | Feedback may lead or lag the main contacts |
| Harness condition | Pin fit, crimp, corrosion, pull test | Intermittent wiring can mimic a contactor fault |
Start with a truth table
List every commanded state, expected coil voltage, auxiliary input state, and main-path state. Include power-up, precharge, run, normal stop, emergency stop, service mode, and fault reset. A truth table reveals whether the logic expects a normally open or normally closed signal and prevents a software inversion from being diagnosed as hardware failure.
Measure at both ends of the signal path
Check continuity at the contactor, then voltage and current at the controller input. Compare terminal-side and controller-side behavior while gently inspecting the harness under an approved de-energized method. Connector fretting, poor crimps, damaged seals, loose terminals, and shared returns can create intermittent feedback even when the auxiliary mechanism is healthy.
Review low-level switching behavior
Some auxiliary contacts need a suitable wetting current to break through films, while sensitive electronic inputs may draw very little. Do not add a load or change the input circuit without product and controller approval. Record the input threshold, leakage current, diagnostic pulses, debounce time, and any pull-up or pull-down network.
Correlate auxiliary and main-contact evidence
If feedback timing is a safety or sequencing input, record coil command, coil current, auxiliary state, and main-contact voltage on one time base. A mechanically linked auxiliary contact may provide useful plausibility evidence, but welded main contacts, contact erosion, or an external open circuit can produce a main-path condition that feedback alone cannot distinguish.
Turn the result into an engineering decision
Review the evidence with design, quality, safety, controls, and supplier representatives when the result affects system release. State what was measured, what was inferred, and what remains unknown. A pass should identify the exact requirement and applicable condition. A failure should preserve the original evidence, describe immediate containment, and assign the next confirmation step. If the result is inconclusive, improve the method, obtain missing product data, or repeat the test under controlled conditions. After corrective work, repeat the baseline measurements and the operating sequence that exposed the issue. Check that the correction did not create a new problem in release time, thermal behavior, auxiliary feedback, insulation, protection coordination, or service access. Record the approved configuration so production and field teams can reproduce it. This closes the loop between a useful test result and a reliable contactor installation.
Build the test around a written question
Begin by writing the decision the evidence must support. A troubleshooting test asks whether an installed circuit explains a symptom. A production test asks whether a repeatable assembly meets an approved limit. A design-validation test asks whether the device and system remain acceptable across the operating envelope. Mixing those purposes produces readings that look precise but cannot support a release decision.
Define the exact ordering code, coil option, contact arrangement, terminal map, revision, and condition of the sample. Record whether the unit is new, conditioned, field-returned, or previously faulted. Identify the main-circuit voltage and current range, control supply, load type, duty, temperature, mounting, conductor interfaces, suppression, protection, and software state. These details prevent a result from one setup being applied to a materially different installation.
Use a controlled evidence sequence
- Review documents. Obtain the approved schematic, product drawing, data sheet, test procedure, safety assessment, and acceptance criteria. Resolve contradictions before connecting equipment.
- Identify energy. Trace every normal, backup, regenerative, capacitive, and externally supplied source. Include stored mechanical and electrical energy.
- Inspect first. Photograph the device and terminals. Check mounting, conductors, fasteners, contamination, heat evidence, coil wiring, auxiliary wiring, and unauthorized changes.
- Verify instruments. Confirm rating, isolation, calibration status, leads, probes, bandwidth, sampling, zeroing, and the effect the instrument can have on the circuit.
- Measure at the device. Sense coil and main-circuit quantities at the defined contactor boundaries so harness and joint effects are visible or deliberately excluded.
- Exercise the real sequence. Include precharge, interlocks, normal start and stop, emergency behavior, restart restrictions, and representative thermal conditions.
- Repeat and compare. Collect enough cycles to see variation. Compare only with written limits that apply to the exact product and conditions.
- Retain the record. Save raw waveforms, units, settings, photos, environmental conditions, reviewers, deviations, and disposition.
Safety and authority: Treat every power circuit as hazardous until an authorized person has isolated all sources, applied the site’s lockout procedure, verified absence of voltage with a suitable instrument, and controlled stored energy. The OSHA control-of-hazardous-energy rule and OSHA electrical work-practice requirements provide a general framework. Product selection and test acceptance must use the exact manufacturer data and the applicable project standards. IEC 60947-4-1 is a relevant standards reference for electromechanical contactors and motor-starters; use the edition adopted by the project.
Measurement quality and uncertainty
Instrument resolution is only one part of uncertainty. Probe position, contact pressure, lead resistance, bandwidth, sampling rate, common-mode voltage, electrical noise, threshold choice, temperature, current stability, timing reference, and operator technique can all change a result. Record enough information for another engineer to reproduce the setup. When a reading is close to a limit, repeat it with a reviewed method instead of rounding toward a desired conclusion.
Separate measured facts from interpretations. “Coil voltage fell during pickup” is an observation. “The contactor is defective” is a conclusion that may not follow if the controller current-limited or the cable drop was excessive. Change one variable at a time where practical. Compare terminal-side and source-side measurements, and preserve the original condition before cleaning, tightening, or replacing parts.
Common diagnostic traps
Do not approve a contactor from a single room-temperature bench operation with short leads and no representative load. Do not use an auxiliary contact as automatic proof of the main-current state. Do not copy a voltage, resistance, time, or temperature limit from another model. Do not combine the most favorable values from separate catalogue tables unless the manufacturer confirms that they apply simultaneously. Do not adjust controller delays to hide unstable hardware before the cause is known.
A replacement can fit mechanically and still be unsuitable. Review coil voltage tolerance, pull-in and hold behavior, internal electronics, suppression compatibility, main-contact voltage, make and break duty, current direction, auxiliary contacts, terminals, mounting, thermal conditions, environment, service life, and fault coordination. The selected device, driver, load, protection, installation, and operating sequence form one system.
Product and RFQ connection

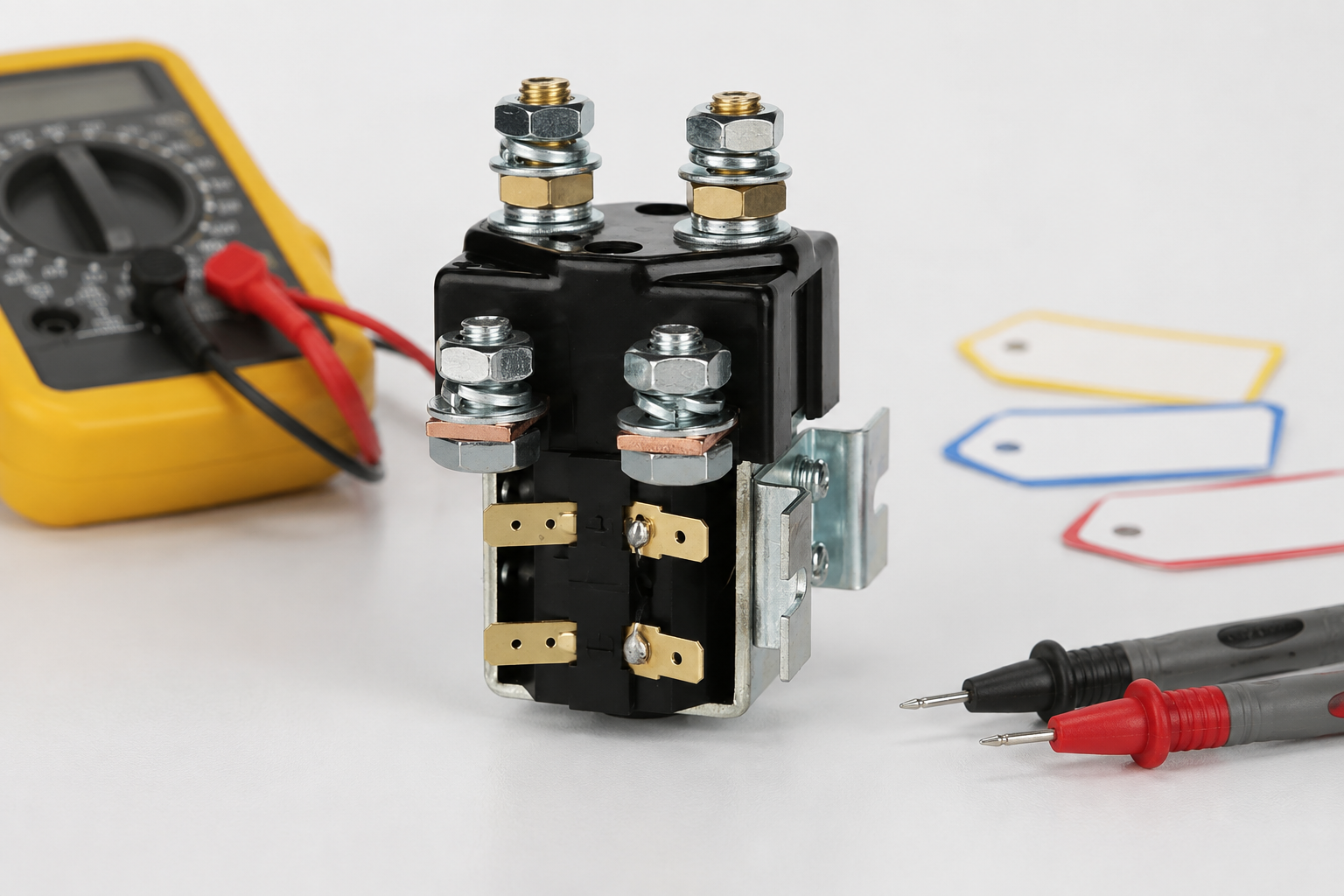

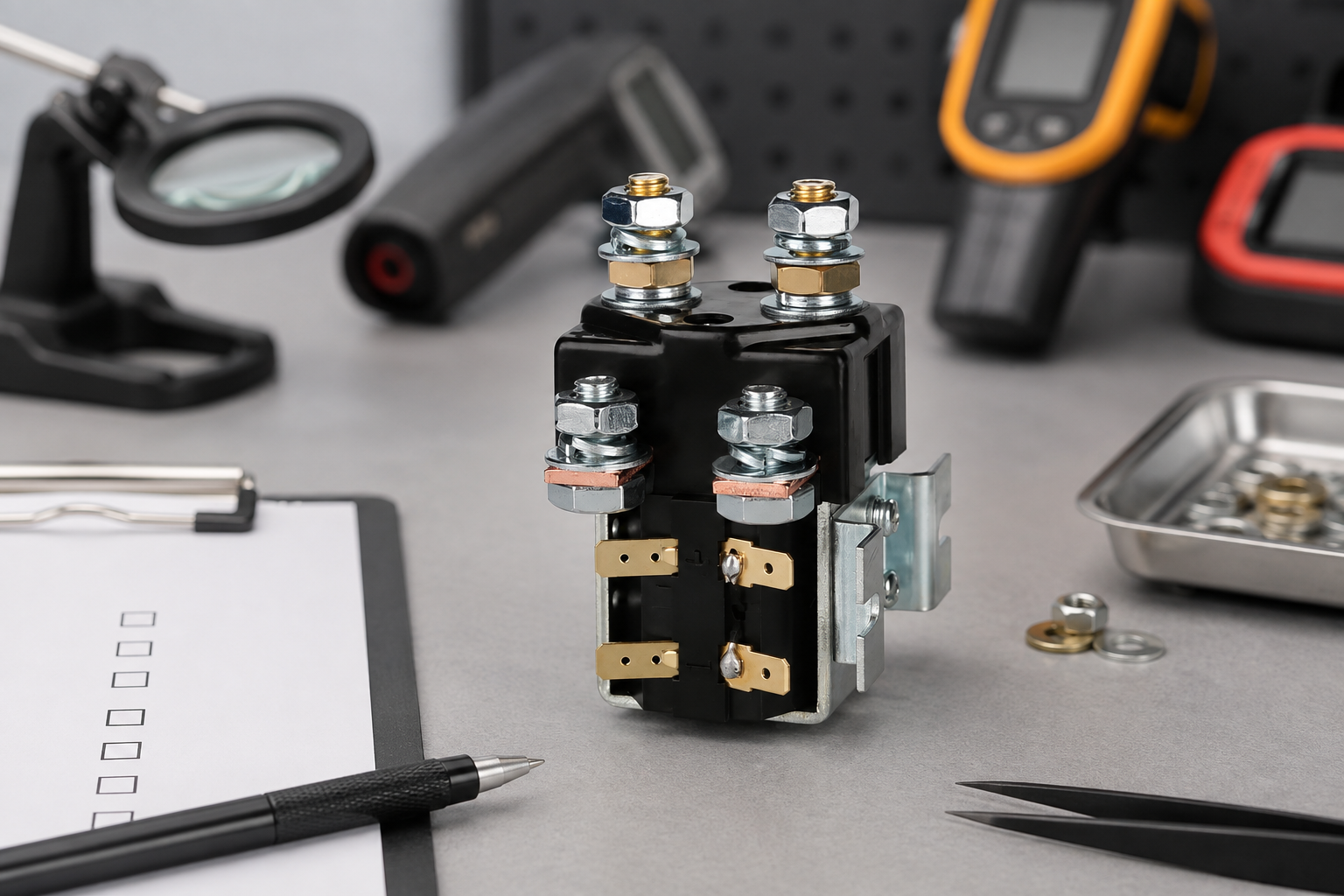

The CZWH100A 1NO1NC DC Contactor is a relevant Sayoon product-family example for this topic, not automatic approval for every condition in this article. Use the exact product drawing and ordering code. For a broader review, see the DC contactor selection guide, the safe DC contactor test workflow, and the wiring and comparison hub.
An effective RFQ describes maximum and minimum voltage, normal and abnormal current waveforms, load characteristics, switching direction, precharge, protection, coil supply and driver, suppression, auxiliary logic, duty, ambient range, enclosure, mounting, conductor interface, timing, life target, required tests, and documentation. Ask the supplier to confirm which requirements are covered by published data and which need project-specific validation.
What the final record should contain
Keep the full device code and serial or lot reference where available; drawing and software revisions; date; operator; reviewer; instrument models and calibration status; terminal map; sensor locations; raw data; calculated values; units; environmental conditions; current and voltage waveforms; operating sequence; deviations; photographs; acceptance criteria; and final disposition. If the sample differs from production intent, list every difference. This record lets purchasing, design, quality, commissioning, and service teams reach the same conclusion without relying on memory.
Educational video
What Is a Contactor and How Does It Work? by Electrician U provides a visual introduction to contactor operation. It is background education; the written product data and approved procedure remain controlling.
Watch the educational video on YouTube.
Frequently asked questions
Does NO mean open when the coil is off?
Normally open and normally closed are defined in the normal de-energized state unless the product documentation states otherwise.
Can auxiliary feedback confirm current is flowing?
No. It usually indicates mechanism position, not actual load current.
Why does a PLC input flicker?
Possible causes include contact bounce, low wetting current, diagnostic pulses, loose wiring, ground reference issues, or software debounce.
Should continuity be checked live?
Use the approved safe method; ordinary continuity mode is generally for isolated, de-energized circuits.
What should be recorded?
Terminal map, truth table, signal levels, timing, harness inspection, controller configuration, and synchronized main-path evidence.
Final review
Confirm the exact contactor, circuit boundary, energy state, operating condition, measurement method, acceptance source, uncertainty, repeatability, and reviewer before releasing a design or returning equipment to service. If a required limit is absent, request written product-specific evidence rather than inventing a threshold.
