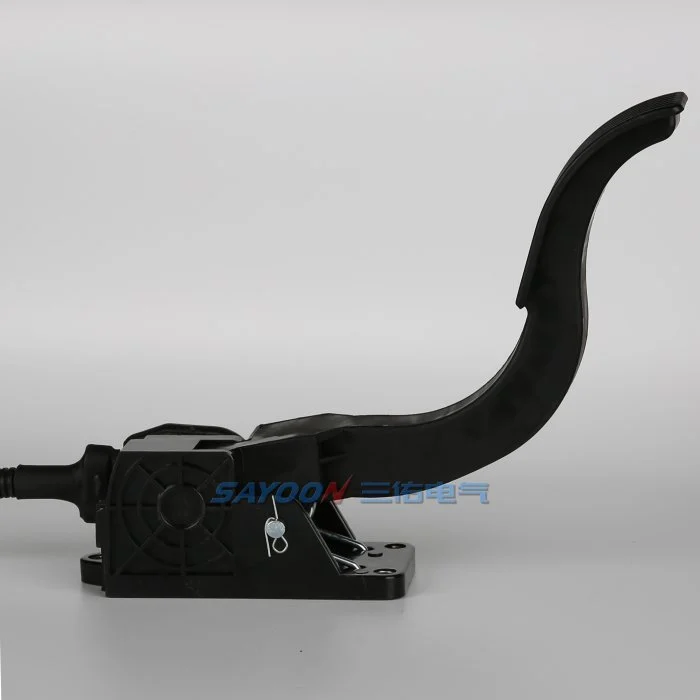

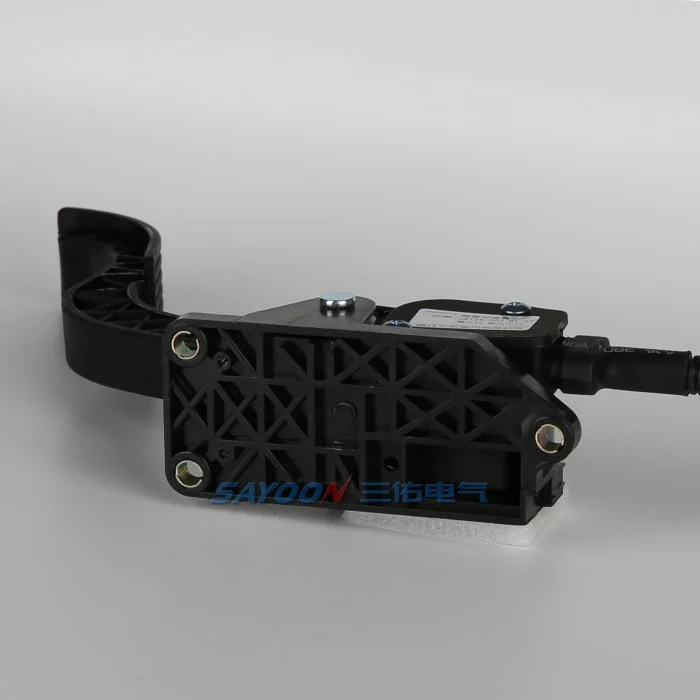

JK12A Hall Effect Accelerator Pedal: Output & Wiring
The SAYOON JK12A is a hall effect accelerator pedal for an electric vehicle motor-controller input. Match the supply, output-voltage range and signal direction to the controller input; a matching connector alone does not ensure compatibility.
- Output examples
- 0.8-4.2V / 0-5V
- Output type
- Voltage
- Wire length
- 270 mm
- Pedal travel
- 16 degrees
- Installation
- Suspension
- Sensor type
- Hall effect
Controller compatibility & wiring
Use this pedal for the foot-speed-control applications listed below. Confirm the controller input specification, idle and full-travel signals, pin assignment, connector and cable routing. Check the return action and any switch signals during system setup before operating the vehicle.
Configure your JK12A pedal
For JK12A, send the controller input diagram, supply voltage, desired output range and direction, connector pinout, cable length, mounting position and quantity. Request the matching wiring diagram and output specification before ordering. See the technical information and drawings below for further details.
FEATURES
SAYOON MODEL IMPLICATION
|
JK12
|
A
|
-0
|
0 |
3 |
-B |
-27 |
|
|
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
|
|
|
1 |
Product type | |||||||
|
2 |
Installation type
|
|||||||
|
3 |
Hall input voltage: 0: 0-5v; 1: 12V; 2: 24V; 3: 36V; 4: 48V; 6: 60V; 7: 72V; 8: 84V; 9: 96V | |||||||
|
4 |
Output voltage: 0: 0-5V; 1: 0.8-4.2V; 4: 4.2-0.8V; 5: 5-0V | |||||||
|
5 |
Total number of conductors: 3; 4; 5 | |||||||
|
6 |
Plug type: 2.8p: 2.8 insert(C, D); 2.8h: 2.8 snap spring; 6.3p: 6.3 insert (P); 6.3h: 6.3 snap spring (A) | |||||||
|
7 |
Wire length (CM)
|
|||||||
USES
TECHNICAL PARAMETERS: (Version 1.41)
|
SAYOON Product Type |
JK12A |
| Input voltage | 5V,10V,12V,24V,36V-84V,96V, Any voltage |
| Output | 0.8-4.2v;0-5V;5-0V;4.2V-0.8V;0-10V;10-0V |
| Output rated load current | 10mA |
| Output type | Voltage |
| Wire length | 270 mm |
| Pedal rotation angle | 16 degrees |
| Maximum permissible load current | ≤10mA |
| Pedal starting force | 20N±5N |
| Pedal stop force | 35N±5N |
| Switch signal maximum permissible load | 100mA |
| Installation form | Suspension |
Note: The main components of this product use Hall sensors and strong magnets, and interference caused by environmental electromagnetic waves and temperature should be avoided as much as possible during use. If used as signal sampling, it should be filtered before use. Please refer to the Hall parameters for the tolerance of the product output. If there are any selection issues, please contact our technical personnel.

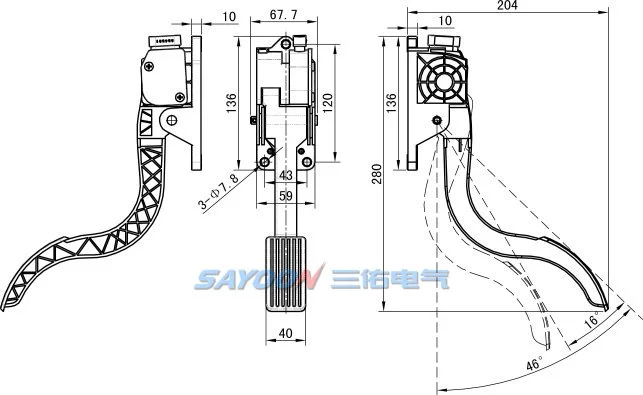

INSTALLATION DIAGRAM

WIRING DIAGRAM

OTHER WIRING DIAGRAM

MECHANICAL ABILITY and USE of the ENVIRONMENT
| Ambient temperature | -30~+85℃ |
| Relative humidity | <95% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP68 |
ORDER INSTRUCTION
|
SAYOON Product Type |
JK12A |
| U.N.W. | 373g |
| Package QTY. | 50pcs |
