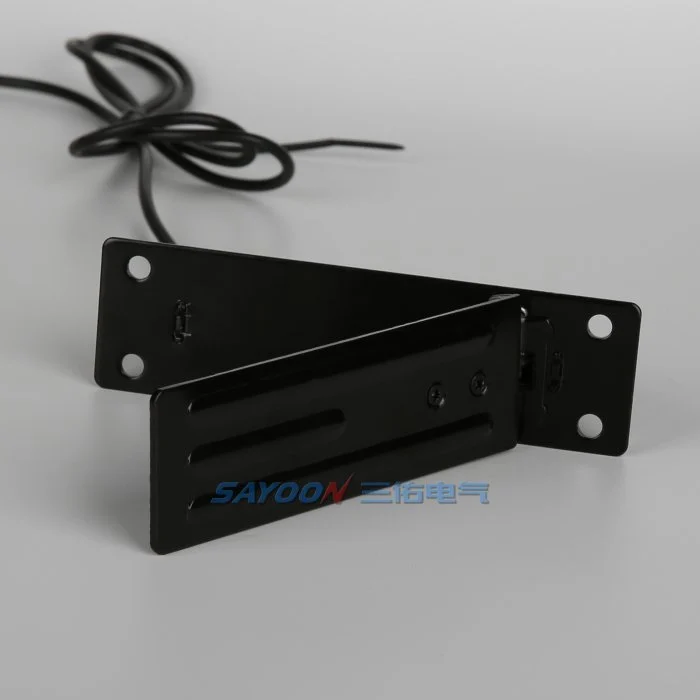

JT2 Hall Effect Accelerator Pedal: Output & Wiring
The SAYOON JT2 is a hall effect accelerator pedal for an electric vehicle motor-controller input. Match the supply, output-voltage range and signal direction to the controller input; a matching connector alone does not ensure compatibility.
- Output examples
- 0.8-4.2V / 0-5V
- Output type
- Positive control
- Wire length
- 1200 mm
- Pedal travel
- 30 degrees
- Installation
- Vertical installation
- Sensor type
- Hall effect
Controller compatibility & wiring
Use this pedal for the foot-speed-control applications listed below. Confirm the controller input specification, idle and full-travel signals, pin assignment, connector and cable routing. Check the return action and any switch signals during system setup before operating the vehicle.
Configure your JT2 pedal
For JT2, send the controller input diagram, supply voltage, desired output range and direction, connector pinout, cable length, mounting position and quantity. Request the matching wiring diagram and output specification before ordering. See the technical information and drawings below for further details.
SAYOON MODEL IMPLICATION
|
JT2
|
D
|
-□
|
|
|
|
|
|
|
|
|
1 |
2 |
3 |
|
|
|
|
|
|
|
|
1 |
Product type | |||||||
|
2 |
Plug type: D: 2.8 insert (2.8P); A: 6.3 snap spring (6.3H) | |||||||
|
3 |
Output voltage: 0.8-4.2V; 0-5V
|
|||||||
USES
TECHNICAL PARAMETERS: (Version 1.52)
|
SAYOON Product Type |
JT2 |
| Input voltage | 5V |
| Output | 0.8-4.2v;0-5V |
| Output rated load current | 10mA |
| Output type | Positive control |
| Wire length | 1200 mm |
| Pedal rotation angle | 30 degrees |
| Installation form | Vertical installation |
| Testing organization certification | CE |
INSTALLATION DIAGRAM

WIRING DIAGRAM

OTHER WIRING DIAGRAM

MECHANICAL ABILITY and USE of the ENVIRONMENT
| Ambient temperature | -30~+85℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP54 |
ORDER INSTRUCTION
|
SAYOON Product Type |
JT2 |
| U.N.W. | 335g |
| Package QTY. | 100pcs |
| Meas.(cm) | 45*42.5*32 |
