Overview
SAYOON MODEL IMPLICATION
|
CHJ |
-□ |
-□ |
|||||||
|
1 |
2 |
3 |
|
1 |
Product type | |||||||
|
2 |
Rated current | |||||||
|
3 |
W: Gray; R: Red | |||||||
USES
Connector(charging plug)for wide range of electric vehicles, or other electrical equipment necessary to use, safe and convenient.
TECHNICAL PARAMETERS: (Version 1.51)
|
SAYOON Product Type |
CHJ |
| Rated current | 50A,175A,350A |
| Rated voltage | 660V |
| High voltage | 2500V DC |
| Main material | PC110,T2 plate with silver |

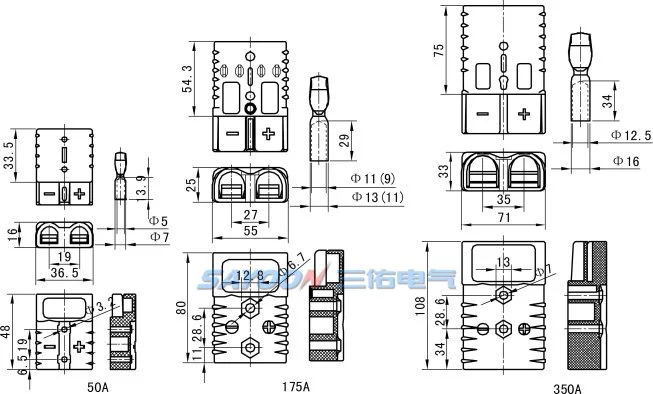

INSTALLATION DIAGRAM
MECHANICAL ABILITY and USE of the ENVIRONMENT
| Ambient temperature | -20~+105℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1～50Hz amplitude 0.5mm |
| Concussion | (60～100) time/minute、acceleration≤4g |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP20 |
ORDER INSTRUCTION
|
SAYOON Product Type |
CHJ |
| U.N.W. | 22g/143g/260g |
| Pull handle U.N.W. | 9g/82g |
