CZK250A-2 High Current Emergency Switch

CZK250A-2 250A Emergency DC Switch: Contacts & Installation

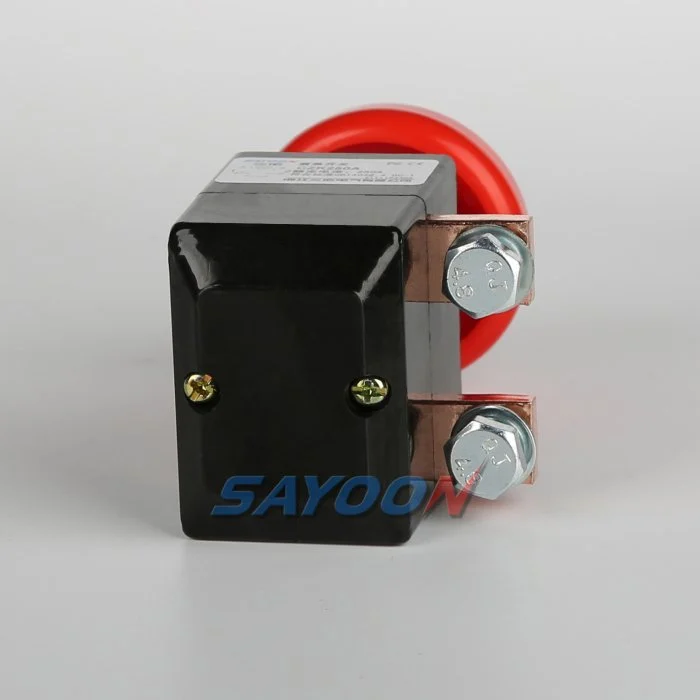

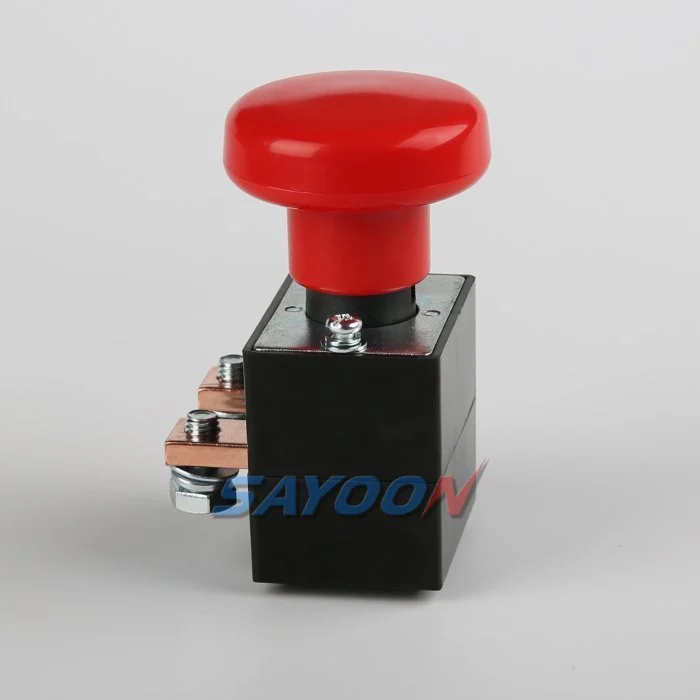

The SAYOON CZK250A-2 is a 250a emergency DC switch for electric vehicle and equipment circuits. Confirm the main-contact state, operating mechanism and mounting arrangement against your system design before selecting a version.

Rated load current
250A
Contact form
1 NC
Voltage options
12V,24V etc.
Operating duty
Continuous
Mounting
Opening 25mm installation
Ambient temperature
-25~+70℃

Contact behavior & installation

Plan the switch location so it is accessible and protected from unintended operation. Verify the normal contact state, how the device is operated and reset, load-current duty and terminal clearances. Confirm system-level emergency-stop requirements separately from the component ratings.

Specify your CZK250A-2 switch

For CZK250A-2, provide bus voltage, continuous and fault-current conditions, required contact state, auxiliary contact needs, panel dimensions and quantity. Request the matching wiring and mounting drawings and confirmation of the selected switching duty. See the technical information and drawings below for further details.

Overview

SAYOON MODEL IMPLICATION

CZK

250A

-2

-□

1

2

3

4

1

Product type

2

Rated current

3

Product size: 1-Large size; 2-Small size

4

Other function codes: C-Magnetic blowouts; S-With auxiliary switch; T-Blown film

USES

The emergency switch is suitable for a variety of electric vehicles and other supporting equipment, and has extremely high safety and convenience.

TECHNICAL PARAMETERS: (Version 1.27)

 SAYOON Product Type

 CZK250A-2

 Rated voltage  12V,24V etc.
 Contact circuit rated load current (A)  250A
 Typical voltage drop across contacts per 100A  ≯30mV
 Insulation Resistance  20MΩ
 Electric strength to resist  50Hz/60Hz 1000VAC 1minute
 Typical fault currents which can be ruptured  800A/5ms at 48V/DC
 Electrical life  10,000 times
 Mechanical life  20,000 times
 Work specification  Continuous
 Contact form  1 NC
 Contact Material  Ag alloy
 Auxiliary contact rated load (optional)  5A/24VDC

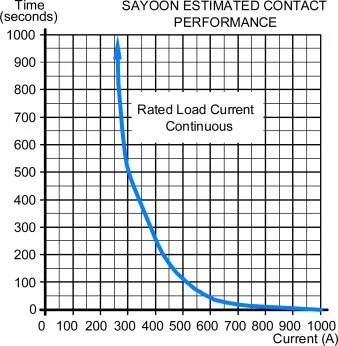

LOAD CHARACTERISTIC CURVE

  • CZK250A-21
  • CZK250A-22

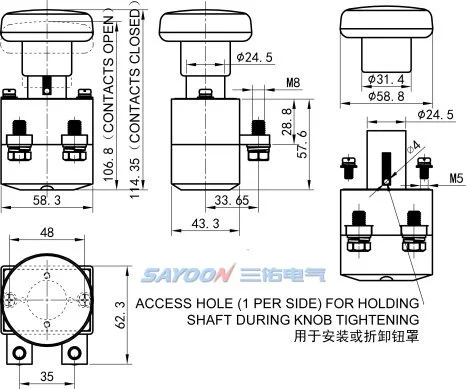

INSTALLATION DIAGRAM

CZK250A-23

WIRING DIAGRAM

CZK125A4

OTHER WIRING DIAGRAM

CZK125A5

MECHANICAL ABILITY and USE of the ENVIRONMENT

 Contact lead M10 tightening torque (N.m)  ≯9.0 appropriate
 fixing screw M5 tightening force distangce(N.m)  ≯2.5 appropriate
 Ambient temperature  -25~+70℃
 Relative humidity  +20℃ 98%
 Vibration freq. atthe fixed position  3G, 1~50Hz amplitude 0.5mm
 Concussion  (60~100) time/minute、acceleration≤4g
 Altitude  2000m
 Installation direction  Random
 International protection  IP40

ORDER INSTRUCTION

 SAYOON Product Type

 CZK250A-2

 U.N.W.  445g
 U.G.W.  475g
 G.W.  23kg
 Package QTY.  50 PCS
 Mounting type  Opening 25mm installation
When placing an order, please provide the following information: name, full model number, whether auxiliary contacts are required, and order quantity. For example: switch and accessories CZK250A-2 100 pcs, rated load current 20MΩ, no auxiliary contacts, default mounting bracket, quantity 100 pcs. If you need products with special voltage specifications, you can place a special order.
