JKD Potentiometer Accelerator Pedal: Output & Wiring
The SAYOON JKD is a potentiometer accelerator pedal for an electric vehicle motor-controller input. It provides a resistance output, so the controller must support the selected potentiometer range and direction.
- Output examples
- 0-5KΩ / 5K-0Ω
- Output type
- Resistance
- Wire length
- 650 mm
- Pedal travel
- 30 degrees
- Installation
- Vertical or suspension
- Sensor type
- Potentiometer
Controller compatibility & wiring
Use this pedal for the foot-speed-control applications listed below. Confirm the controller input specification, idle and full-travel signals, pin assignment, connector and cable routing. Check the return action and any switch signals during system setup before operating the vehicle.
Configure your JKD pedal
For JKD, send the controller input diagram, supply voltage, desired output range and direction, connector pinout, cable length, mounting position and quantity. Request the matching wiring diagram and output specification before ordering. See the technical information and drawings below for further details.
FEATURES
SAYOON MODEL IMPLICATION
|
JKD
|
-0
|
0
|
3 |
-A |
-65 |
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
6 |
|
|
|
|
|
1 |
Product type: Potentiometer pedal accelerator | |||||||
|
2 |
Reserved: 0 | |||||||
|
3 |
Potentiometer outputresistance: 0: 0-5kΩ; 1: 0-2KΩ; 2: 2K-0Ω; 5: 5KΩ-0; 9: Other values | |||||||
|
4 |
Total number of conductors: 2; 3; 4; 5; 6; 7 | |||||||
|
5 |
Plug type: 2.8p: 2.8 insert(C, D); 2.8h: 2.8 snap spring; 6.3p: 6.3 insert (P); 6.3h: 6.3 snap spring (A) | |||||||
|
6 |
Wire length (CM)
|
|||||||
USES
TECHNICAL PARAMETERS: (Version 2.52)
|
SAYOON Product Type |
JKD |
| Potentiometer life | 1000000 Cycle |
| Output | 0-5KΩ;5K-0Ω;0-2KΩ;0-2KΩ |
| Output power rating,watts | 2W at 70℃ |
| Output type | Resistance |
| Wire length | 650 mm |
| Pedal rotation angle | 30 degrees |
| Micro Switch Rated Current | 0.6A 125VDC |
| Accelerate the operating voltage of the switch | 0-96V |
| Pedal position | The left or right |
| Installation form | Vertical or suspension |
| Testing organization certification | CE |
Note: The main components of this product use imported brand potentiometers, and the output tolerance and performance refer to the parameters of potentiometer P270. If used as signal sampling, it should be filtered before use. If there are any selection issues, please contact our technical personnel.

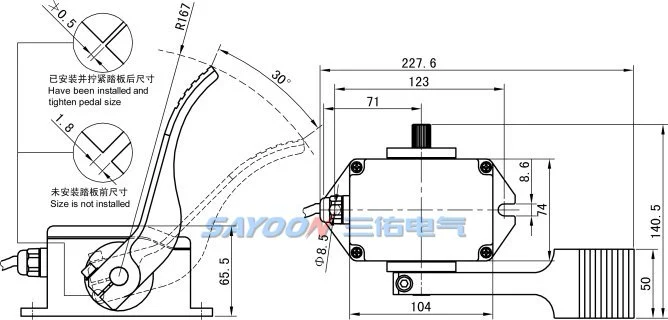

INSTALLATION DIAGRAM

WIRING DIAGRAM

OTHER WIRING DIAGRAM

MECHANICAL ABILITY and USE of the ENVIRONMENT
| Ambient temperature | -30~+85℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP68 |
ORDER INSTRUCTION
|
SAYOON Product Type |
JKD |
| U.N.W. | 868g |
| Package QTY. | 40pcs |
